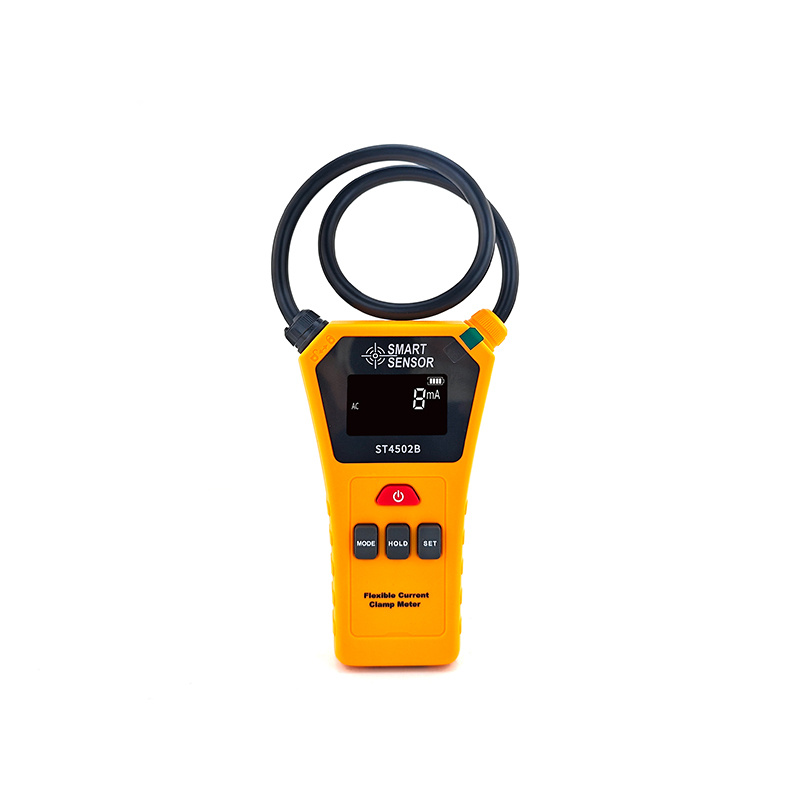

SMARTSENSOR ST4502B ເຄື່ອງວັດແທກຕົວຍຶດປະຈຸບັນທີ່ມີຄວາມຍືດຫຍຸ່ນ (502mm, 0 mA – 12000 A)

Function: Current test, leakage current test

Coil length: 502 mm

Coil internal diameter: φ160 mm

Current range: 0 mA – 12000 A

Current resolution: 1 mA

Current accuracy: ±2% ±5 dgt

AC voltage range: 0.0 V – 750 V AC, accuracy ±1.5% rdg ±3 dgt

DC voltage range: 0.0 V – 1000 V DC, accuracy ±1.5% rdg ±5 dgt

DC/AC voltage resolution: 0.1 V

Sampling rate: 2 times/second

Measure mode: Flexible CT

Host size (W/T/H): 151 × 100 × 35 mm (without coil)

LCD size: 45 × 28 mm

Coil thickness: φ8 mm

Data storage: 500 groups

Insulation resistance: More than 100 MΩ (1 kV)
