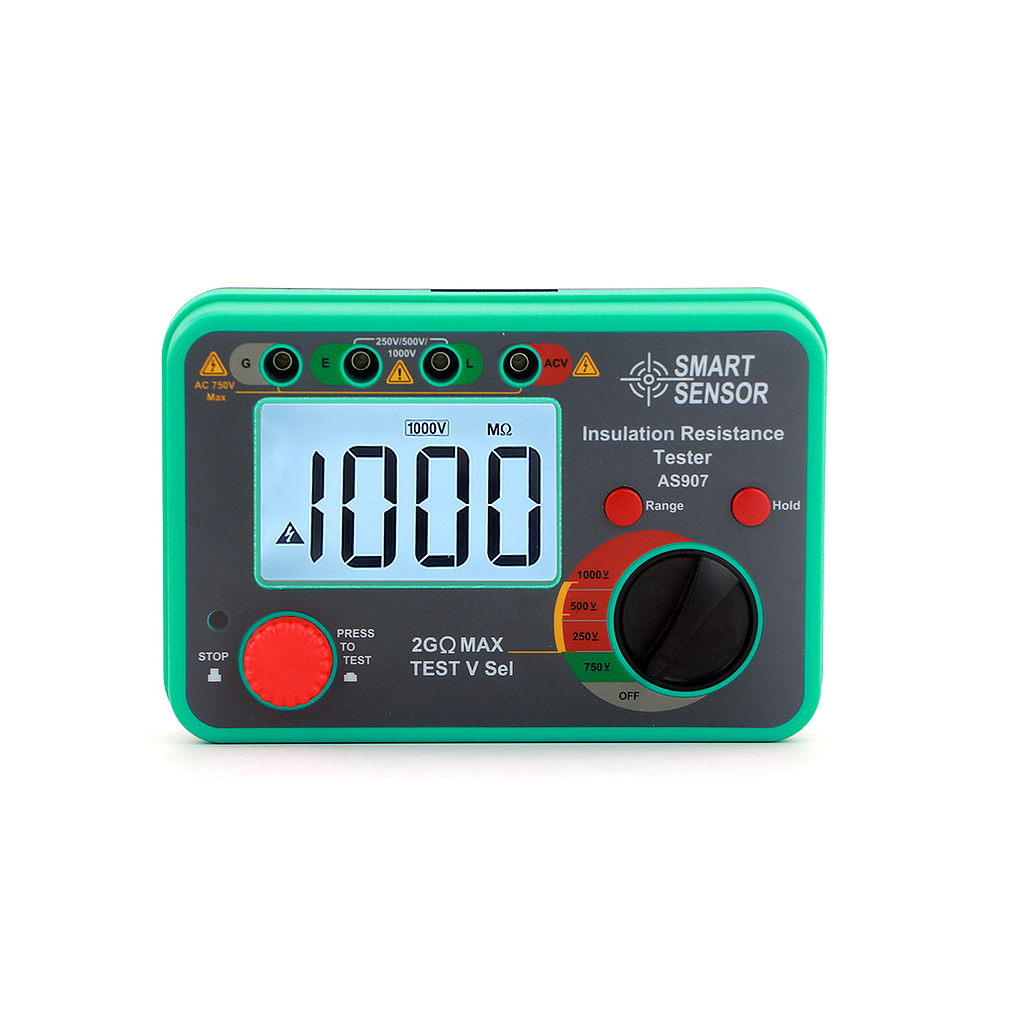

SMARTSENSOR AS907 ອຸປະກອນທົດສອບຄວາມຕ້ອນຂອງການຕິດຕໍ່ສະຫນາມ (0.1MΩ - 2000MΩ)

Measuring range: 0.1MΩ - 2000MΩ

Measurement accuracy: ± (4%rdg±2dgt)

Output voltage: 250V/500V/1000V

Output voltage accuracy: ±10%

Measuring Current: (250kΩ/500kΩ/1MΩ)1mA

Current accuracy: ±10%

Measuring Voltage: AC750V

AC voltage accuracy: ± (1%rdg + 6dgt)

ACV test frequency: 50~200Hz

Short-circuit current: <1.6mA

Sample rate: About 3 times per second

Low power indication: √

Data-hold: √

LED indicator: √

Out-of-limit indication: √

Backlit display: √

Auto power-off: √

Operating environment: 0℃~40℃, 30%~85%RH

Power supply: 6×1.5V (AA) battery

Product net weight: 369g

Product size: 119×67×171mm
