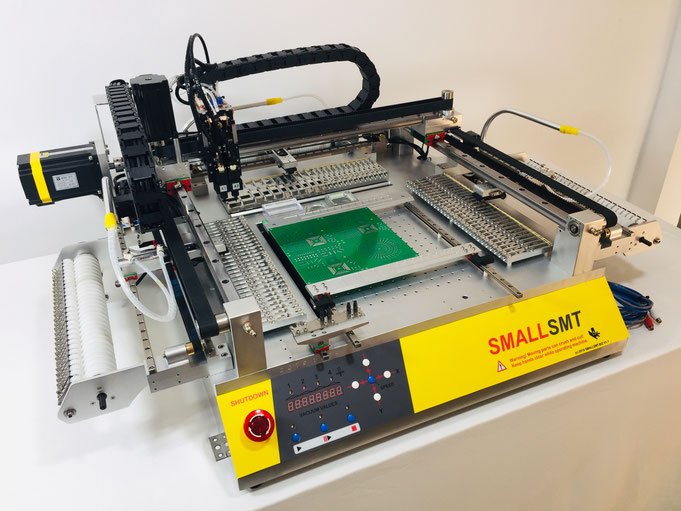

6 slot nozzle changer included!
West: 28x 8mm
North: 2x 24mm, 3x 16mm, 6x12mm, 11x 8mm
East: 28x 8mm optional!
West feeder has fixed configuration
North feeder customizable
East feeder customizable
All feeders included!
Small trays on North and South side included!
Big tray optional!
High torque stepper motors on X and Y axis microstepping resolution 0,02mm.
Stepper motors for Z axis and A1 + A2.
Angle resolution 0,0278 degree 1/6400
Linear guides from HIWIN in X / Y / Z axis.
Linear guides on each push feeder side.
Strong belt system.
Working area: 300 x 300mm NW and 300 x 250mm NWE
2x Bottom cameras using differnt magnification
1x Top camera for fiducial detection / measurements
1x USB Video digitzer included.
OpenCV based vision system.
English Windows software included based on Yusheng system.
