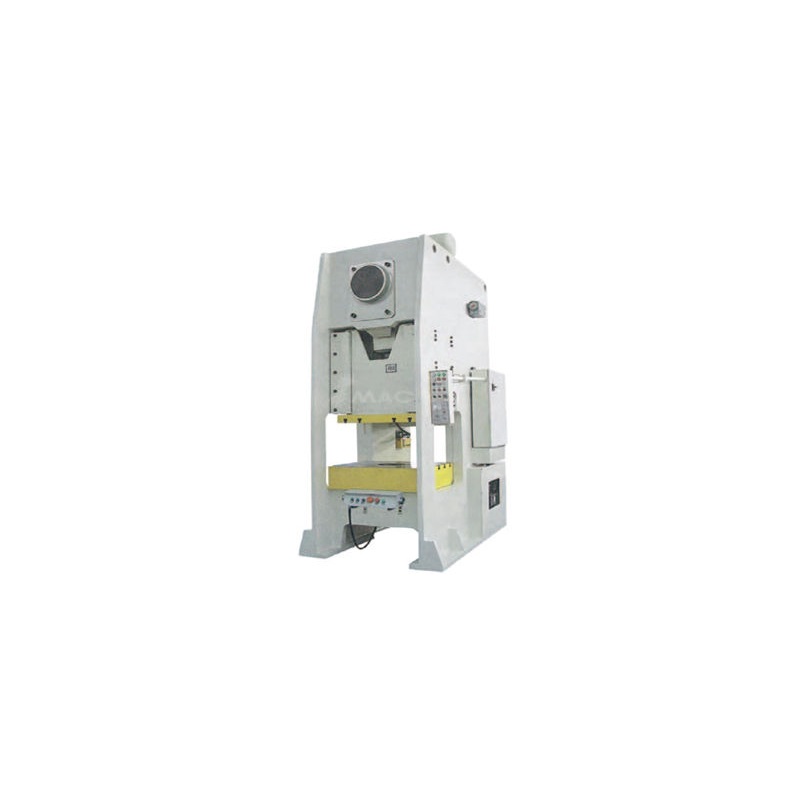

SMAC PSD-400 D-Frame ກົດຈຸດດຽວ

Nominal Pressure (kN): 4000

Nominal Pressure Stroke (mm): 8

Stroke of Slide (mm): 250

Strokes (S.P.M): 25-35

Max. Die Set Height (mm): 550

Die Height Adjustment (mm): 120

Dimension of Side-Hole (F-B) (mm): 880

Size of Table

L-R (mm): 1600

F-B (mm): 860

Thickness (mm): 200

Bottom Size of Slide

L-R (mm): 1100

F-B (mm): 720

Hole for Punch Shank

Diameter (mm): F75

Depth (mm): 100

Variable Motor Power (kW): 37

Overall Dimensions

F-B (mm): 3825

L-R (mm): 1905

Height (mm): 4310

Total Weight (kg): 36000
