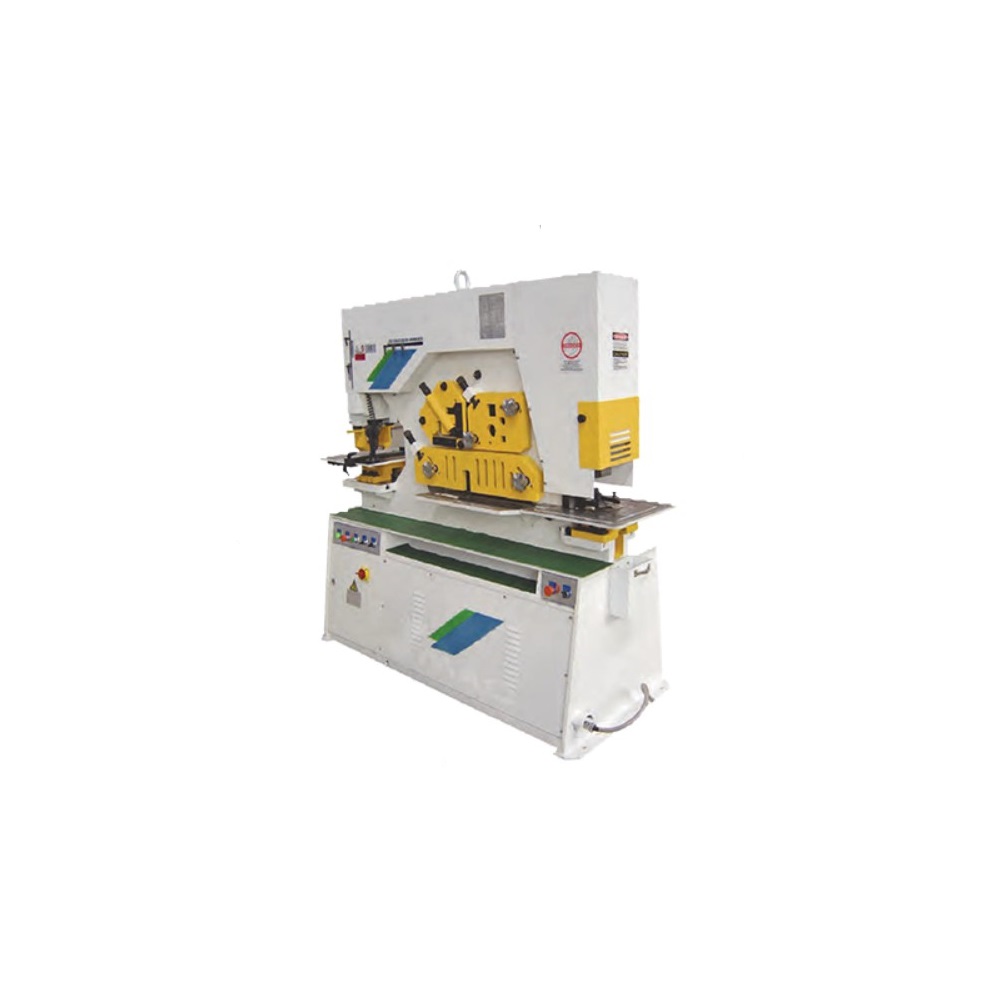

SMAC PS110 ພະນັກງານທາດເຫຼັກໄຮໂດລິກ

Pressure (Ton): 110

Max.cutting thickness (mm): 25

Plate strength (N/mm²): ≤ 450

Cutting angle (°): 8°

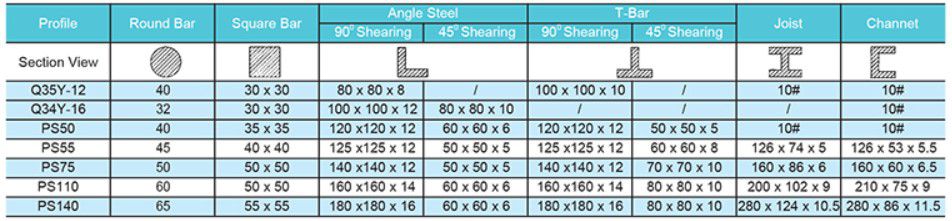

Shearing size of one stroke (mm): 25 x 330

16 x 600

Ram stroke (mm): 80

Number of strokes (mm): 6

Throat dupth (mm): 400

Punching thickness (mm): 25

Max.punching diameter (mm): 35

Power of main motor (kw): 7.5

Overall dimensions LxWxH (mm): 2355x960x2090

Weight of machine (kg): 4800
