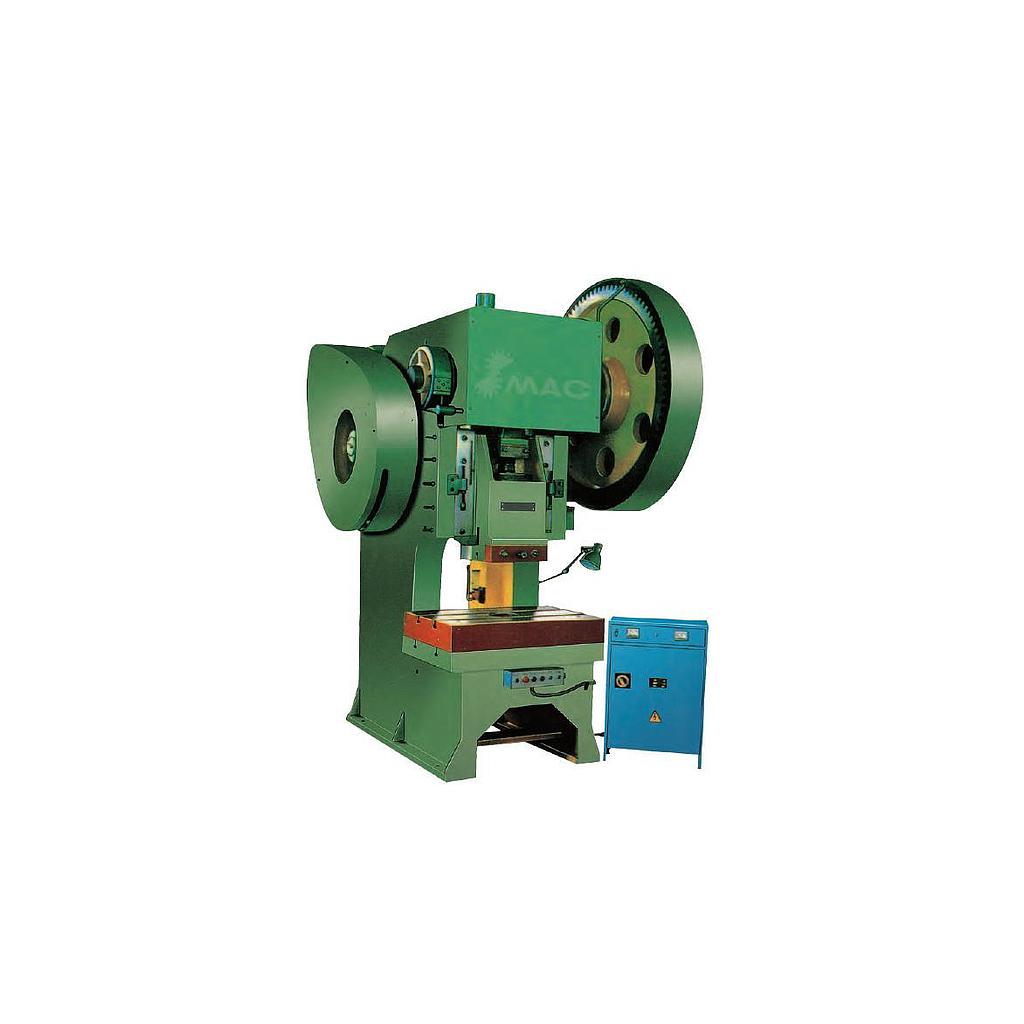

SMAC MPS-100B ເປີດ Back Press ດ້ວຍຕຽງຄົງທີ່

Rated pressure (KN): 1000

Slide stroke (mm): 130

Stroke (min-1): 38

Max. die set height (mm): 325

Die set height adjustment (mm): 100

Distance from slide block centre to the frame (mm): 380

Worktable dimensions

Front to back (mm): 710

Right to left (mm): 1080

Dimensions of slide block bottom surface

Front to back (mm): 380

Right to left (mm): 450

Size of the handle hole

Diameter (mm): 50

Depth (mm): 85

Motor

Type: Y160L-6

Power (KW): 11

Overall dimension LxWxH (mm): 2450 x 1680 x 3020

Weight (Kg): 9000
