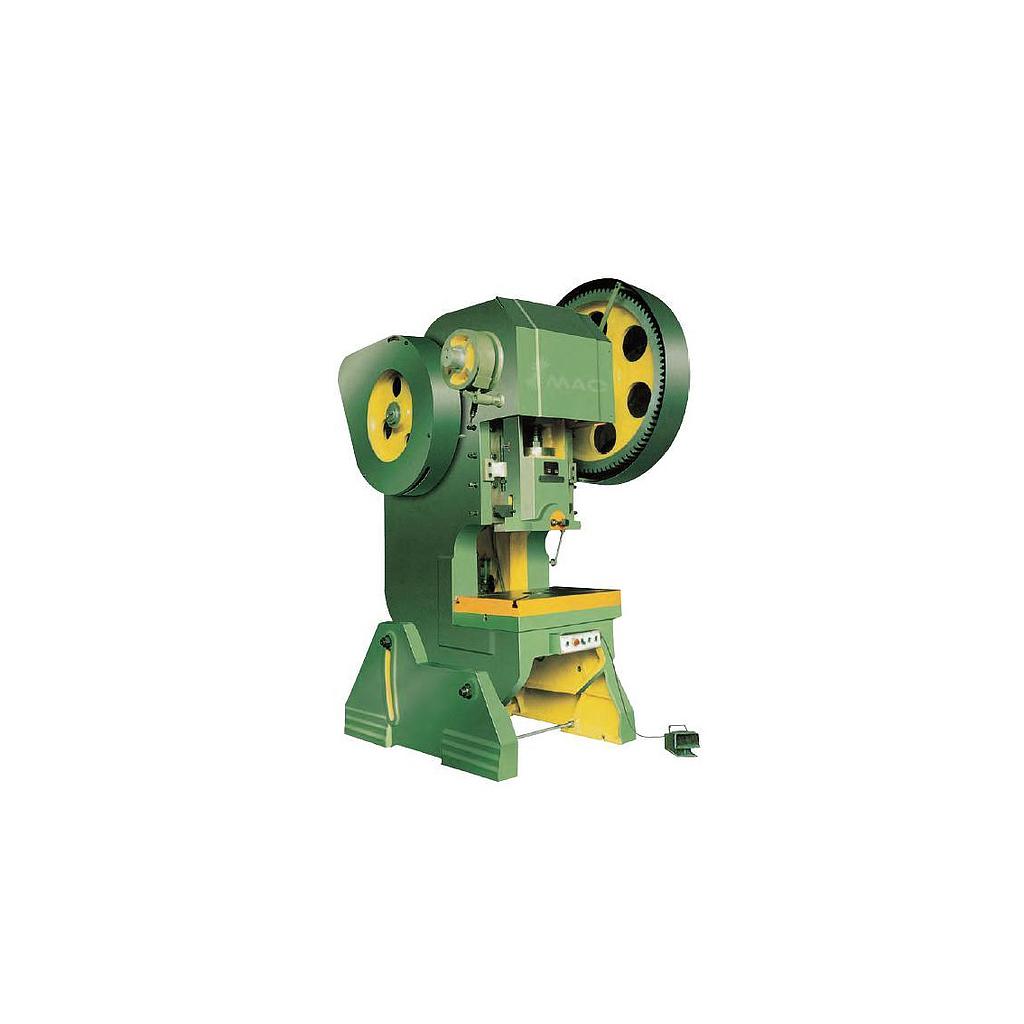

SMAC MP-6.3 ເປີດ Back Inclinable Press

Rated pressure (KN): 63

Slide stroke (mm): 35

Stroke (min-1): 85

Max. die set height (mm): 120

Die set height adjustment (mm): 30

Distance from slide block centre to the frame (mm): 110

Worktable dimensions

Front to back (mm): 200

Right to left (mm): 310

Dimensions of slide block bottom surface

Front to back (mm): 120

Right to left (mm): 140

Size of the handle hole

Diameter (mm): 25

Depth (mm): 55

Inclinable Angle of body (°): 45

Motor

Type: Y90L-6

Power (KW): 0.75

Overall dimension LxWxH (mm): 730 x 550 x 1503

Weight (Kg): 400
