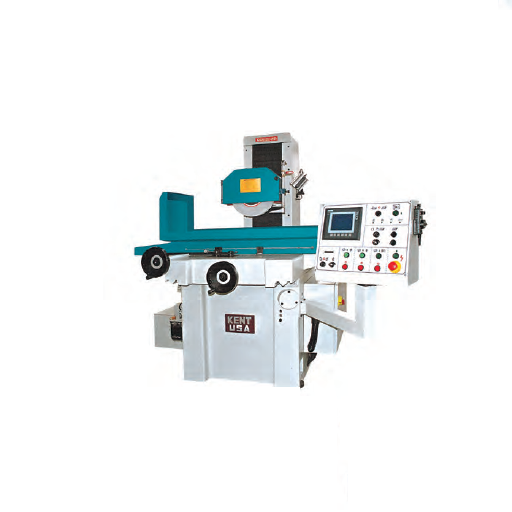

SMAC KGS510SD ເຄື່ອງປັ່ນພື້ນຜິວ KENT(USA).

Working Surface of Table (mm): 500x1000

Max.Table Travel (mm): 1140

Max.Cross Travel (mm): 540

Distance Between Table Surface and Spindle Center (mm): 590

Max.Table Load (kgs): 700

Tee Slot(NumberXWidth) (mm): 3x16

Table Speed (m/min): 5~25

Crossfeed Handwheel:

1grad (mm): 0.02

1rev: 5

Automatic Crossfeed (mm): 0.5~12

Power Cross Feed:

50Hz (mm): 1250

60Hz: 1500

Grinding Wheel (mm): 355x40x127

Spindle Speed:

50Hz (rpm): 1450

60Hz: 1740

MPG Handwheel Feed Rate: x1,x10,x100

Min.Down Feed Rate (mm): 0.001

Power Head Increment (mm/min): 210

Spindle Motor (kw): 5.5

Vertical Motor (nm): 2.6

Hydraulic Motor (kw): 2.2

Dust Collection Motor (w): 550

Coolant Motor (w): 90

Crossfeed Motor (kw): 370

Floor Space Dimensions (mm): 4445x2200

Packing Dimensions (mm): 3400x2260x2250

Net Weight (kgs): 5000

Gross Weight (kgs): 6000
