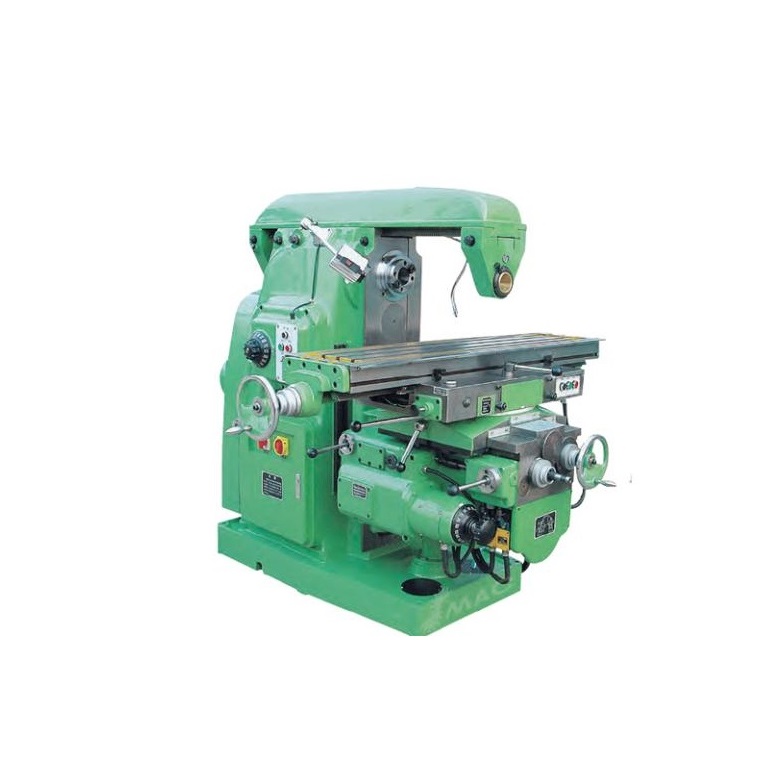

SMAC HUM32A Universal Knee-type Milling Machine

Table size (mm): 320 x 1320

Longitudinal travel X (mm): 800/780

Cross travel Y (mm): 300/280

Vertical travel Z (mm): 410/400

Feed speed steps: 18

Feed speed ranges

Longitudinal X (mm/min): 15-750

Cross Y (mm/min): 15-750

Vertical Z (mm/min): 5.7-280

Min. distance between spindle center to table (mm): 235-535

Spindle speed steps: 18

Spindle speed ranges (kW): 30-1500

Main motor power (kW): 7.5

Overall size (cm): 232 x 179 x 172

Net weight (kg): 3300
