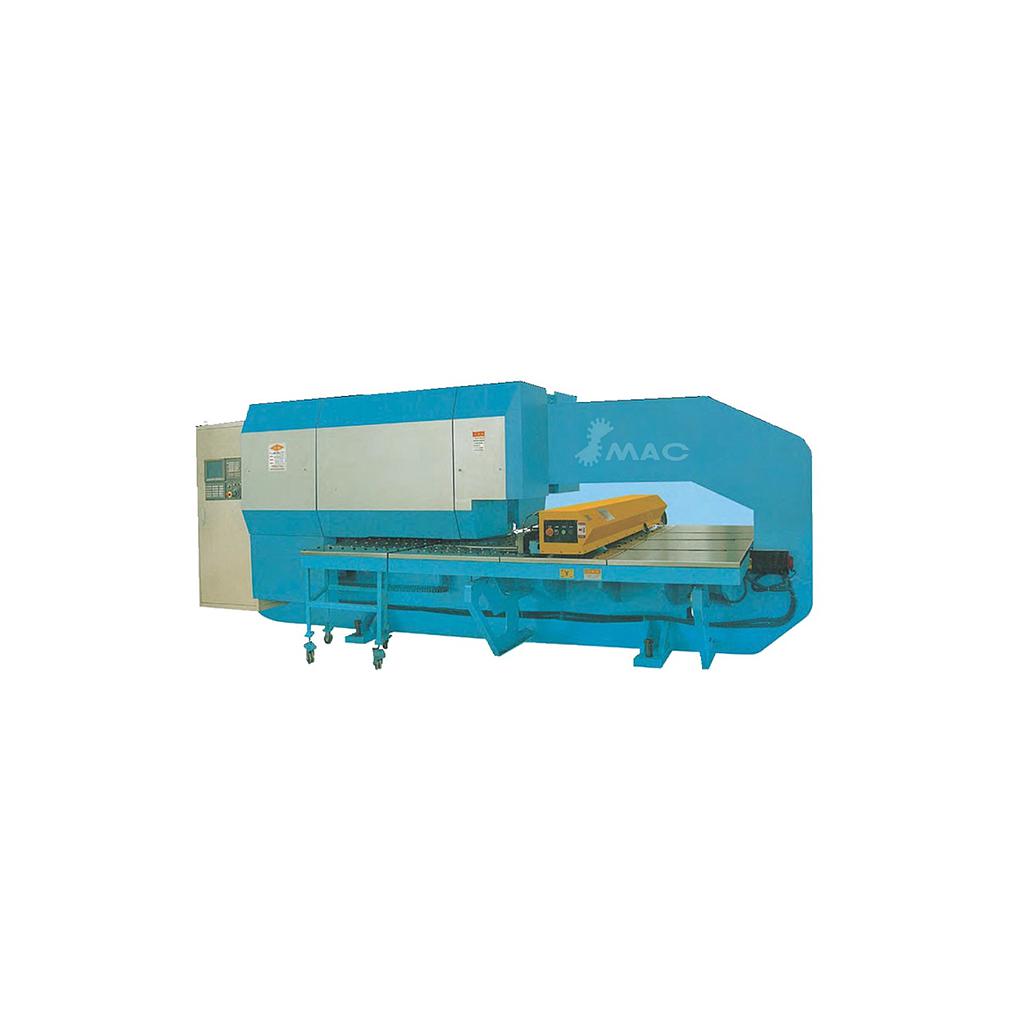

SMAC HPM-300/8 CNC Turret Punch ເຄື່ອງ (8 Station)

Punch force (KN): 300

Table size (mm): 1250x2500

Table loading (kgs): 150

Max punching thickness (mm): 6.35

Punching stroke length (mm): 32

Stroke per min (spm): 360

Max punching diameter (mm): 88.9

No of tool station: 8

Punching accuracy (mm): ±0.10

X,Y travel speed (m/min): 50

CNC control axis: X,Y,T,C

Air pressure (MPa): 0.5~0.6

Motor power (kW): 20

Overall size (mm): 5140x3200x2170

Weight (T): 15
