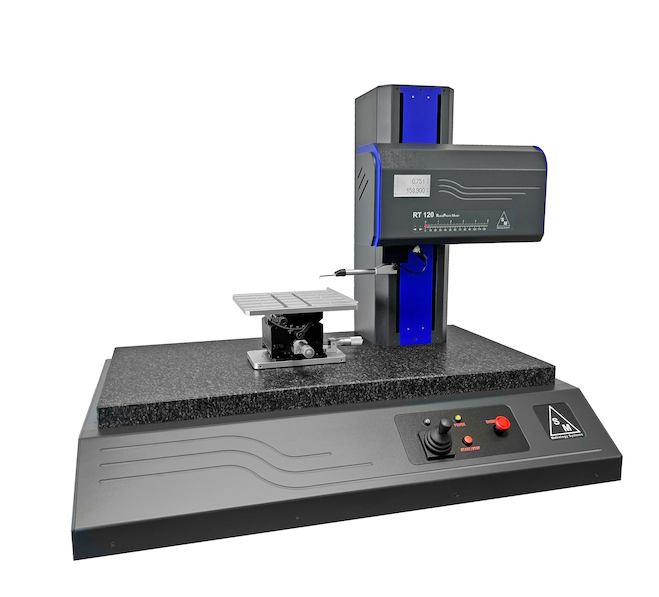

SM Metrology RT120 ເຄື່ອງທົດສອບຄວາມຮ້ອຍຂອງໂປຣຟາລໂມເຕີ້ລະບົບຫ້ອງປະຕິບັດການ (0.25 - 0.5 - 1 mm/s)
Parameters calculated:
ISO 21920-2: Ra; Rz; Rq; Rp; Rv; Rt; Rsk; Rku; Rsm; Rc; Rdq; Rda; Rpc; Rdc; Rmc; Rmc; Rcm; Rmr rel.; Wa; Wz; Wq; Wp; Wv; Wt; Wsk; Wku; Wsm; Wc; Wdq; Wpc; Wdc; Pa; Pq; Pp; Pv; Pt; Psk; Pku; Psm; Pc; Pdq; Ppc; Pdc; Rk; Rpk; Rvk; Rak1; Rak2; Rmrk1; Rmrk2
ISO 4287:09 - Rp, Rt, Rv, Rc, Rz, Rzjis, Ra, Ra75, RSm, RΔq, Rsk, Rku, Rδc, RPc, RmrRel Wp, Wt, Wv, Wc, Wz, Wa, Wq, WSm, WΔq, Wsk, Wku, Wδc, WPc, WmrRel Pp, Pt, Pv, Pc, Pz, Pa, Pq, PΔSm, Pq, Psk, Pku, Pδc, PPc, PmeRel
ISO 13565:96 - Rk, Rpk, Rvk, Mr1, Mr2, A1, A2
DIN 4768:90 - Ry5, Rmax, R3z, R3zMax, PtDIN
ISO12085:98 - Pt, R, AR, Rx, Wte, W, AW, Wx, Rke, Rpke, Rvke
VDA 2007 - WD, WDc, WDt, WDSm
Measurement range in X: 120 mm (4.72 in)
Measurement range in Z: 3 mm (0.12 in) o 5 mm (0.39 in) or 20 mm (0,78 in) with SB402measure head unit
Resolution in X: 0.1 μm (0.02 μin)
Resolution in Z: 0.1 nm (0.004 μin)
Measurement speed: 0.25 – 0.5 – 1 mm/s (0.01 – 0.02 – 0.04 in/s)
Tip sizes: Diamond cone 60° angle 2 µm (78 µin) radius
Traverse length of column: Column with a positioning of 300 mm (11.8 in)
CNC cycles: CNC automatic measurement and Positioning cycles with self-comparison
Connection: USB interface towards Windows© PC
Software: Profile Studio
Languages: Italian, French, English, German, Spanish, Portuguese and Slovenian
Sizes: LxDxH1100 x 570 x 720 mm (43.3 x 22.4 x 28.3 in)
Overall weight: 76.5 kg(186.6 lbs)
