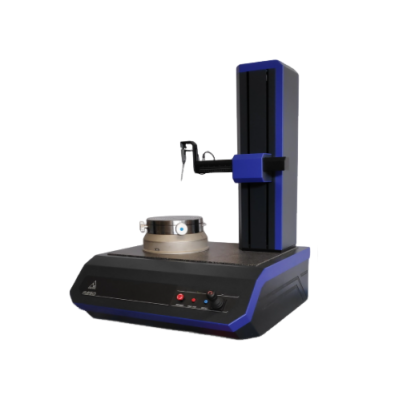

SM Metrology R250 CNC ເຄື່ອງທົດສອບຄວາມກົງກັນ (500N, 250 mm)
Axis C - Table:
Pneumostatic, table diameter 250 mm
Maximum load 500 N
Maximum measurable diameter 500 mm
Centering and leveling: ± 3mm - ± 2 °
Roundness error: <0.08 μm
Z axis - Column:
Useful stroke: 500 mm, motorized and measuring
Straightness error over 400 mm: 0.8 μm
Straightness error over 100 mm: 0.3 μm
Measurement speed: 0.5-1-2mm / s
Positioning speed: 0-15mm / s
Axis R - Arm:
Useful stroke: 300 mm
Motorized positioning
Positioning speed: 0-15mm/s
Calculable parameters: Roundness, flatness, straightness, cylindricity, taper, cone shape, concentricity, parallelism,orthogonality, angularity, coaxiality, run-out, total run-out, thickness variation, Fourier analysis.
Probe: Bi-directional with impact protection - Measuring range: 0.6 mm - Resolution: 0.001 µm
Dimensions: 786 x 727 x 993 mm (L x P x H)
Weight: 280 kg
Power supply: 110-240 V; 50-60 Hz
