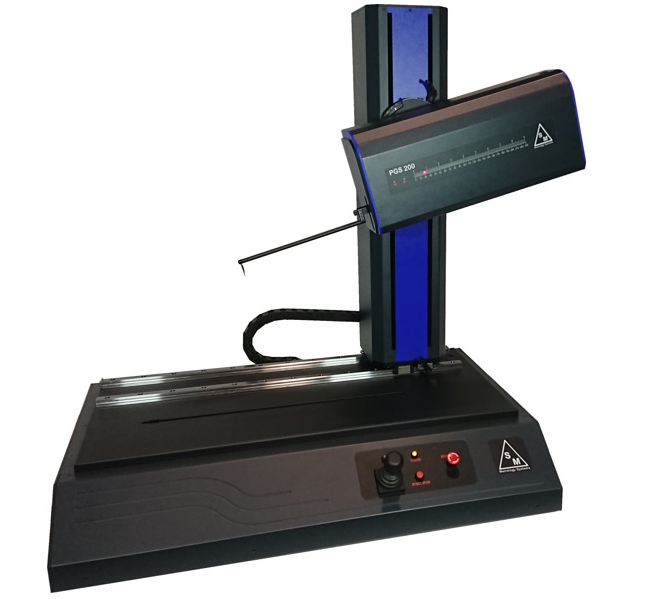

SM Metrology PGS200 ໂປຣຟາໂລແມຕເຕີ (manual column, 320 mm)
Measuring range X axis: 220 mm (8.66 in)
Measuring range Z axis: 50 mm (1.97 in)
Resolution on the X axis: 0.5 μm (0.02 μin)
Resolution on the Z axis: 0.1 μm (0.008 μin)
Positioning speed: 0 - 10 mm/s (0 - 0.4 in/s)
Measurement speed: 0.2 - 0.5 - 1 - 2 mm/s (0.008 – 0.02 – 0.04 – 0.08 in/s)
Column travel: 320 mm (12.6 in) manual column
Measuring tip: Tip radius 20 μm (0.8 μin) and front camber
CNC cycles: Automatic CNC measuring and positioning cycles with self-comparison of the measured profiles
Connection: USB interface to Windows PC ©
Languages: Italian, French, English, German, Spanish, Portuguese and Slovenian
Dimensions: 1096 x 587 x 796 mm (L x P x H version with 500mm manual column)
Power supply: 110-240 V ; 50-60 Hz
Total weight: 42 kg (92 lbs)
Software: Profile Studio
