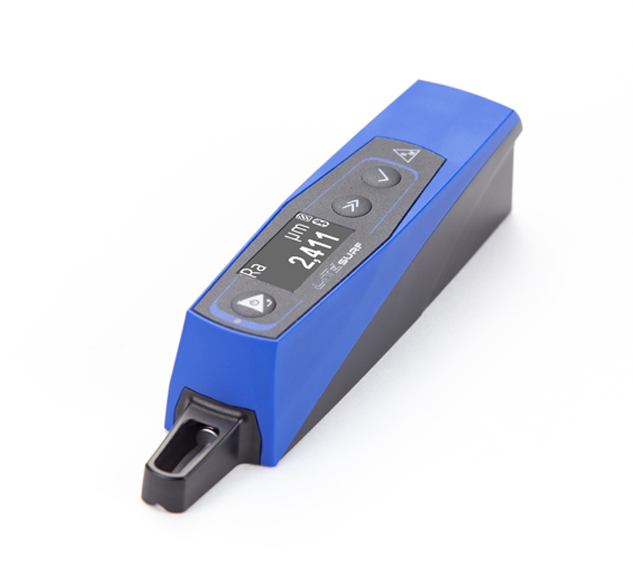

SM Metrology LITEsurf ອຸປະກອນທົດສອບຄວາມຮ້ອຍ (250 μm (+ 50 μm -200 μm))
Measuring range: 250 um (+ 50 um -200 um)
Resolution: 0,001 μm
Accuracy class: 1° ISO/DIN
Cut-off length: 0.25 - 0.8 - 2.5 mm
Number of cut-off: Selectable from 1 to 5
Exploration travel: Until 17.5 mm
Probe: Optical transduction system , 90° rotable for lateral measurements
8 parameters (on board)
ISO: Ra, Rq, Rt, Rz, Rc, Rmax, RSm, RPc,
MOTIF: Pt, R, AR, Rx, Ppc
Measurement parameters: 44 parameters (with APP Roughness Studio PREMIUM)
ISO: Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, RΔq, RΔa, Rmax, Rδc, Rmr, RPc, RLo, Rlr, Rzjis, RHSC, R3z, hp, Ep
JIS: Ra, Rq, Ry, RzJIS, tp, RSm, S
ASME: Rp, Rpm, RPc, Rsk, tp
MOTIF: R, AR, Rx Rke, Rpke, Rvke, Mr1e, Mr2e, A1e, A2e
Unit of measure: Millimeters and inches
Interface: Monochrome OLED display and 3 waterproof membrane buttons
Language: Italian, French, English, German, Spanish, Portuguese
Memory: Approx.18000 parameters only (0,8mm x 5) - Approx.30 with profile (0,8mm x 5)
Autonomy: 10 hours of work and at least 300 measurements
Connectivity: Integrated Bluetooth and USB, connection to Smartphone, Tablet and PC
Standard equipment: LITEsurf roughness tester, USB charger, USB type C cable, 8mm diameter tail piece for mounting on the stand, roughness specimen, transport case, user manual
