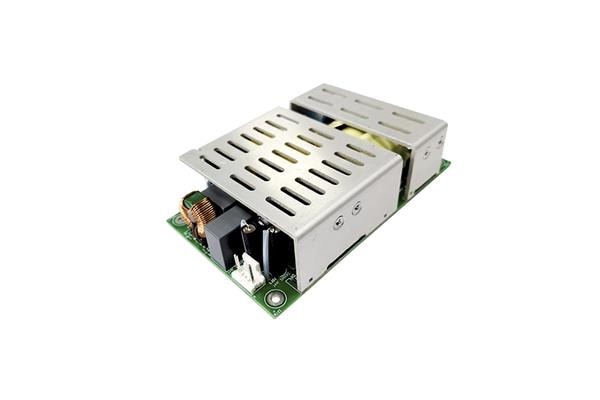

SL Power SLB300S18C ອຸປະກອນຈົດພະລັງງານສະຫຼຸບກຳລັງ 300W 18V 11.1A ລະດັບ II

Width: 76.2 mm (3 in)

Height: 35.56 mm (1.4 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Approvals: CSA, EN, IEC, UL62368-1, UL60601-1

Dimensions: 127 mm x 76.2 mm x 35.56 mm

Efficiency: 92 %

Output Power: 300 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Not Regulated

Isolation Voltage: 4 kV

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 11.1 A

Output Voltage-Channel 1: 18 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
