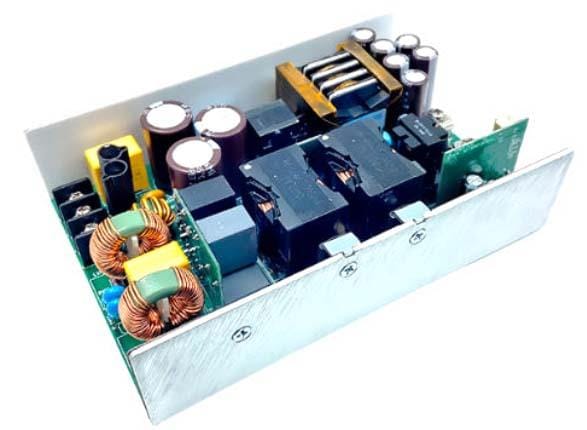

SL Power NCF660S48K ເຊື່ອມຕໍ່ພະລັງງານ AC-DC 660 ວັດ CF ປະເພດການແພດ

Width: 101.6 mm (4 in)

Height: 40.64 mm (1.6 in)

Length: 177.8 mm (7 in)

Industry: Medical

Dimensions: 7 mm x 4 mm x 1.6 mm

Efficiency: 90 %

Output Power: 660 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Isolation Voltage: 1.5 kV, 4.5 kV

Number of Outputs: 1 Output

Power - Convection: 440 W

Power - Forced Air: 660 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 13.6 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
