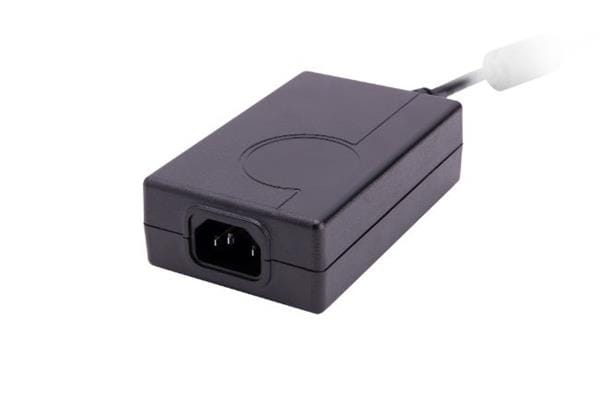

SL Power ME60A2403N01 ອາເດັດເຕັບ AC ເຕັບອິດສີ 60320 C8 24Vdc, 60W, ລະດັບ VI

Width: 46 mm

Height: 33 mm

Length: 85 mm

Region: Universal

Industry: Medical

Efficiency: 65 %

Unit Weight: 315 g

Output Power: 10 W

Input Voltage: 100 VAC to 240 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Regulated

Mechanical Style: External

Center Pin Length: 9.5 mm

Number of Outputs: 1 Output

DC Output Connector: 2.5 mm Barrel Plug (2.5x5.5)

Input Voltage - Max: 240 VAC

Input Voltage - Min: 100 VAC

DC Output Cord Length: 1.8 m

Output Current-Channel 1: 2 A

Output Voltage-Channel 1: 5 VDC

AC Plug included/required: Required

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
