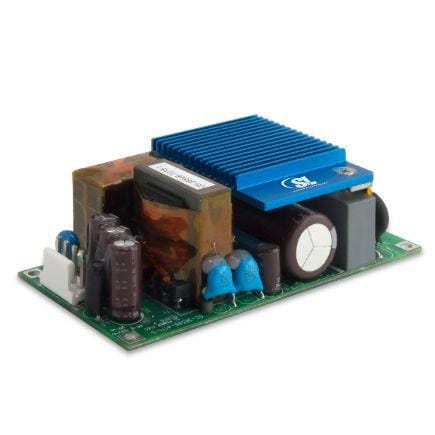

SL Power MB120S24K01 AC-DC Converter 120W 80-264Vin 24Vout 4.1A Med

Width: 50.8 mm

Height: 31.8 mm

Length: 101.6 mm

Industry: Medical

Approvals: ANSi/AAMI ES60601-1, CAN/CSA-C22.1 No. 60601-1, DEMKO EN60601-1, IEC60601-1

Compliance: ANSi/AAMI ES60601-1, CAN/CSA-C22.1 No. 60601-1, DEMKO EN60601-1, IEC 60601-1

Efficiency: 94 %

Unit Weight: 225 g

Output Power: 120 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 10 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
