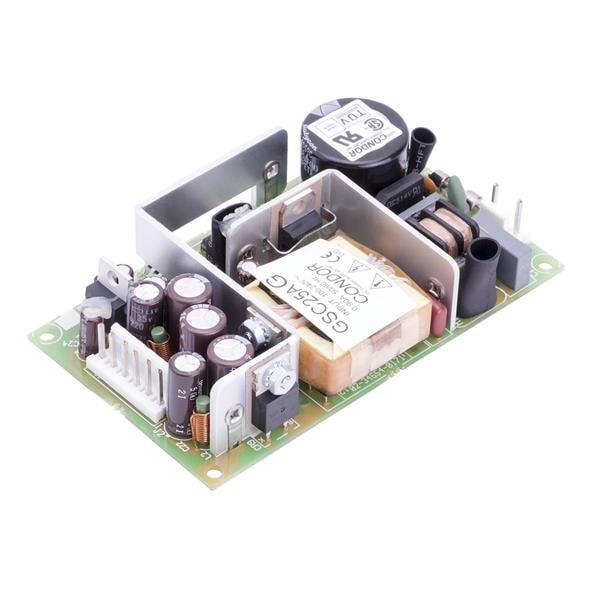

SL Power GSC25AG ເຊັດຊັນສະພາບ 25W +5.1/+12/-12V

Width: 63.5 mm (2.5 in)

Height: 21.844 mm (0.86 in)

Length: 107.95 mm (4.25 in)

Industry: Industrial

Unit Weight: 245.590 g

Output Power: 25 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 63 Hz

Load Regulation: Regulated

Number of Outputs: 3 Output

Power - Convection: 25 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2.5 A

Output Current-Channel 2: 1.5 A

Output Current-Channel 3: 200 mA

Output Voltage-Channel 1: 5.1 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 12 VDC
