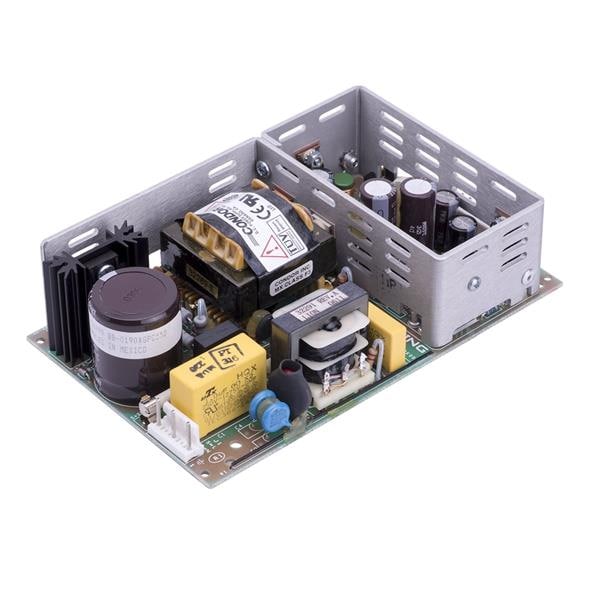

SL Power GPC55BG ແປງພະລັງງານສະຫນັບສະຫນູນປ່ຽນແປງ 55W +5/+12/-5/-12V

Width: 100.076 mm (3.94 in)

Height: 42.672 mm (1.68 in)

Length: 160.02 mm (6.3 in)

Industry: Industrial

Approvals: EN60950-1

Compliance: EN60950-1

Efficiency: 70 %

Output Power: 55 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Number of Outputs: 4 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6 A

Output Current-Channel 3: 1 A

Output Current-Channel 4: 1 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 5 VDC

Operating Temperature Range: 0 C to + 50 C

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
