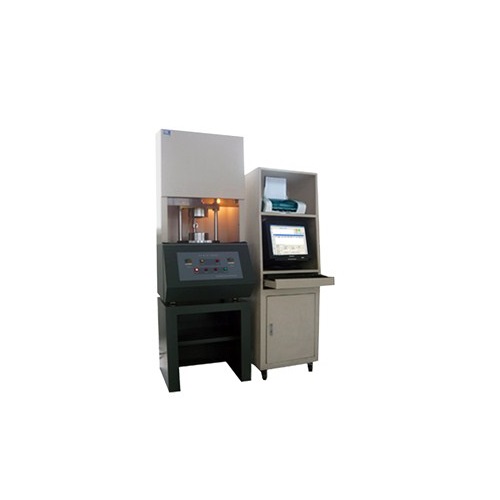

SKZ Industrial SKZ131 ເຄື່ອງທົດສອບ Vulcanizing ຢາງ (0N.m ~ 10N.m)
Standard: ASTM D5289, ISO6502, T30,T60,T90.
Temperature range: room temperature ~ 300 ℃
Warming time: ≤ 15min
Temperature Resolution: 0 to 200 °C: 0.1 °C; 0 to 300 °C: 1 °C.
Temperature fluctuation: ≤ ± 0.5 °C (after feeding)
Torque range: 0N.m ~ 10N.m
Torque display resolution: 0.001N.m
Maximum test time: 120min (modify time during testing)
Swing angle: ± 0.5 ° (total amplitude of 1 °)
Body swing frequency: 1.7Hz ± 0.1Hz (102r/min ± 6r/min)
Power: AC220V ± 10% 50Hz
Dimension: 645mm × 580mm × 1300mm (L × W × H)
Weight: 210kg
- Control Software Features:
Operating Software: English version
Units of selection: kgf-cm, lbf-in, Nm, dN-m
Test data: ML (Nm) minimum torque; MH (Nm) maximum torque; TS1 (min)
initial curing time; TS2 (min) initial curing time; T10, T30, T50, T60, T90 curing time; Vc1, Vc2 vulcanization rate index
Test curve: vulcanization curve, temperature curve of the upper and lower mold
Time can be modified during testing
Test data can be automatically saved
Test data and curve can be displayed on a piece of paper, and available at any point on the mouse to select the curve values
Can add historical data for comparative analysis and print out.
