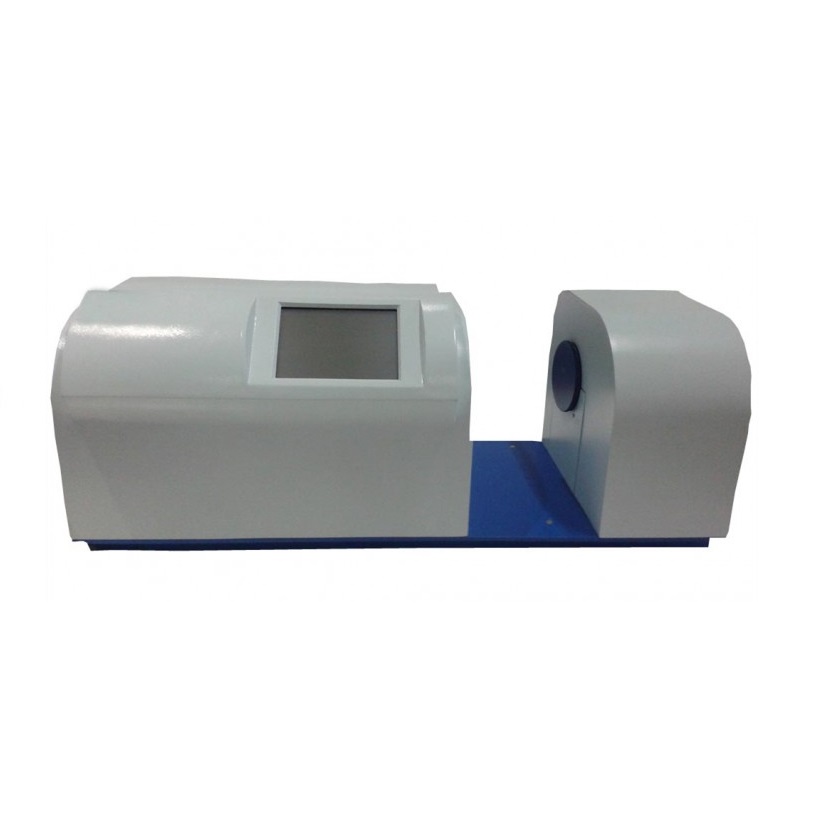

SKZ Industrial SKZ120C ເຄື່ອງວັດແທກອາຍພິດອັດຕະໂນມັດຢ່າງເຕັມສ່ວນ (0-100%, 0-30%)
Transmittance accuracy: ≤ 1%
Haze Accuracy:
Haze ≤ 0.5%, ≤ ± 0.1%
Haze> 0.5%, ≤ ± 0.3%
Light Repeatability: 0.5%
Haze Repeatability:
Haze ≤ 0.5%, 0.05%
Haze> 0.5%, 0.1%
Instrument Size: 740mm * 270mm * 300mm
Instrument Weight: 21kg
Power supply: 220V ± 22V 50Hz ± 1 Hz
Environmental conditions: 5 ℃ ~ 35 ℃
- Performance:
1. Optical system:
Collimated illumination, diffuse vision, integrating sphere receiving mode
Sample window size: into windows: Æ25mm, out the window: Æ21mm
Light source: C light (6774K), A light (2856K)
Receiver: silicon photovoltaic cells
2. Electronic Systems:
Large LCD touch screen
Minimum reading: transmittance haze 0.01% 0.01%
USB interface, U disk storage function.
3. Measuring range:
Transmittance 0% -100.0%
Haze 0% -30.00%
4. Sample size:
Solid Sample size: 50mm * 50mm
Tank size: 50mm * 50mm * 10mm
Film Sample size: 50mm * 50mm
Checkout Sample: Æ40mm * 2mm.
