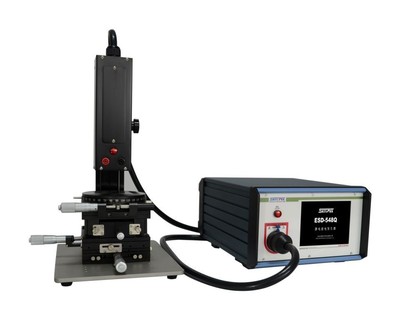

Skylark HBM-8K ເຄື່ອງຜະລິດກະແສໄຟຟ້າສະຖິດ semiconductor (0,1-8kV ± 5% 100-800V ± 5%)

Output voltage Human mode Machine mode:0.1-8kV ± 5% 100-800V ± 5%

Output polarity positive and negative

Trigger mode Single discharge

Count discharge according to the set discharge times

Other hosts automatically trigger this alarm

Discharge mode Human mode or machine mode

Discharge interval 1-99s

Discharge times 1-999

Discharge capacitance 100pF ± 10% 200pF± 10%

Discharge resistance 1500 ω ± 10% 0 ω ± 10%

Discharge waveform conforms to ANSI/ESD STM5.1, ANSI/ESD STM5.2,

EIA/JESD22-A114-B, EIA/JESD22-A115-A standards

Mil-std-883, GJB-128, GJB-548

Ambient temperature: 15°C-35°C Relative humidity 10%-75%

System power supply AC220± 10%, 50/60Hz, about 300W
