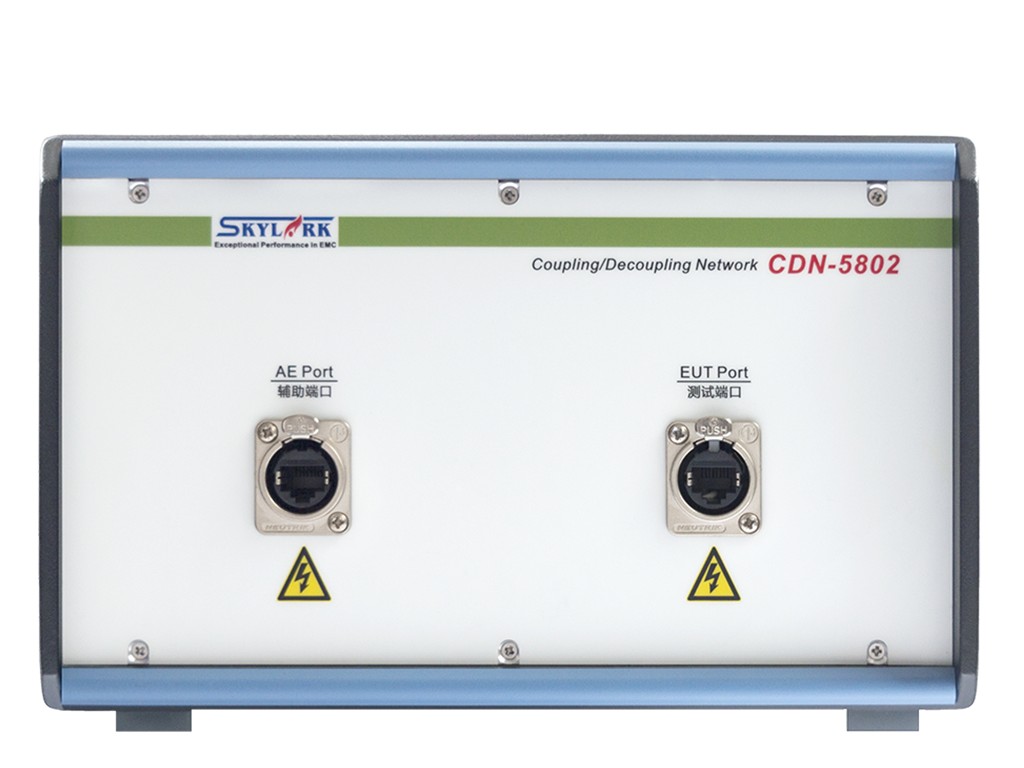

Skylark CDN-5802A Coupling decoupling ເຄືອຂ່າຍ
Applicable range: ≤4kV, 10/700us waveform, 8 lines of unshielded symmetrical communication lines
Test voltage: up to 4kV (10/700us waveform, connected to RJ45 connector, not connected to RJ45 connector, the maximum test voltage is 1.5kV)
Coupling mode: 90V gas discharge tube s 250ohm resistance / per line, 8 lines at the same time - ground (common mode)
Input, output interface: RJ45 female head
Terminal layout (RJ45 connector):
- First pair: pins1/2
- Second pair: pins3/6
- Third pair: pins4/5
- Fourth pair: pins7/8
Data transfer rate: 100MBit/s (up to 1000M)
Network operating voltage: up to 50V DC
Network operating current: up to 1A
