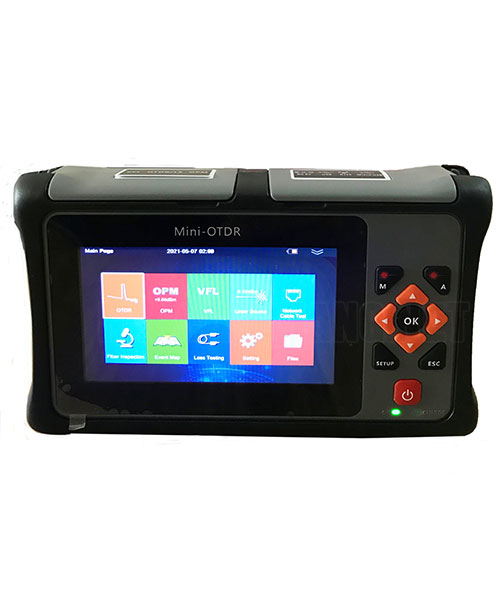

SKYCOM VFV-1000 ອຸປະກອນທົດສອບ OTDR (1310/1550 nm)

Wavelengths: 1310/1550 nm

Measuring range: 100 m / 500 m / 2 km / 5 km / 10 km / 20 km / 40 km / 70 km / 80 km / 90 km

Pulse width: 5 ns / 10 ns / 20 ns / 50 ns / 100 ns / 200 ns / 500 ns / 1000 ns / 2000 ns / 5000 ns / 10000 ns

Result storage: Up to 80,000 records

Interfaces: USB, mini USB, SD card

Connector type: SC/FC

VFL output power: 10 mW, CW/2 Hz

LS output power: > -5 dBm

OPM: Type A: +10 dBm ~ -70 dBm; Type B: +26 dBm ~ -50 dBm

Power supply: AC 100 V ~ 240 V, 0.8 A; Lithium battery: 3.7 V, 5200 mAh

Operating temperature: -10 ~ 50 °C

Weight: 0.56 kg

Dimensions: 175 mm × 105 mm × 45 mm
