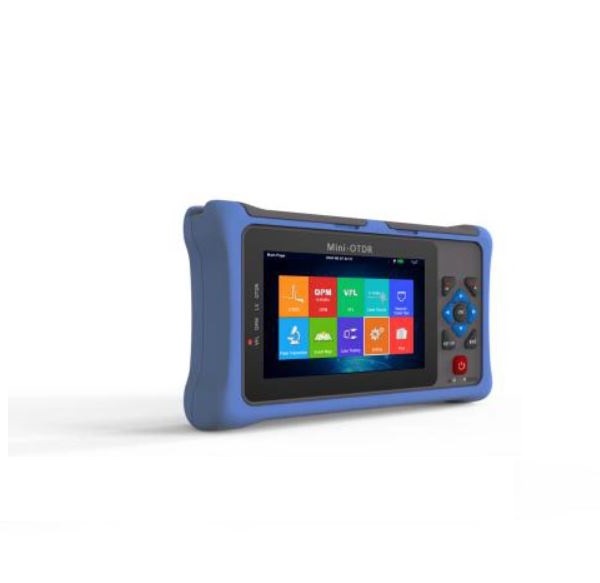

SKYCOM TOT560-A24D ຈໍສຳຜັດ OTDR (+26dBm~-50dBm, 80km)
Wavelength: 1310/1550nm
Dynamic Range: 24/22dB
Max. Test Range: 80km
Measuring range: 100m、500m、2km、5km、10km、20km、40km、80km/90km
Pulse width: 5ns 10ns 20ns 50ns 100ns 200ns 500ns 1us 2us 5us 10us
Sampling resolution: Minimum: 0.02m
Event dead zone: < 2.0m
Attenuation dead zone: < 7.0m
The sampling point: 128,000 point
Linearity: ≤ 0.05dB/dB
Loss threshold: 0.01dB
Loss resolution: 0.001dB
Range resolution: 0.01m
Range accuracy: ≤(0.5m+Range×3×10-5+Sampling resolution) （Excluding refractive index error）
Memory: >40000 tested results
File Format: Sor standard file format
Data interface: 2 USB(Type A×1, Micro USB×1, SD card)
Screen: 4.3-inch TFT-LCD (Standard distribution capacity touch screen)
Power supply: Adapter /Charger input 100-240 VAC, 50Hz, lithium battery
Battery: 3.7V/5200mAh, Standby time > 10 hours
Temperature:
Working temperature：-10℃~+55℃
Storage temperature：-20℃~+80℃
Humidity: ≤95%（No condensation）
Size/Weight: 175x105x45mm / 0.56kg（Contain the battery）
OPM: +26dBm~-50dBm
VFL: 10mW，CW/2Hz
LS(Laser Source): The output power：-5dBm，Modulation frequency：CW/270Hz/1KHz/2KHz
Network Cable test: Support network wire sequence testing and wire alignment
