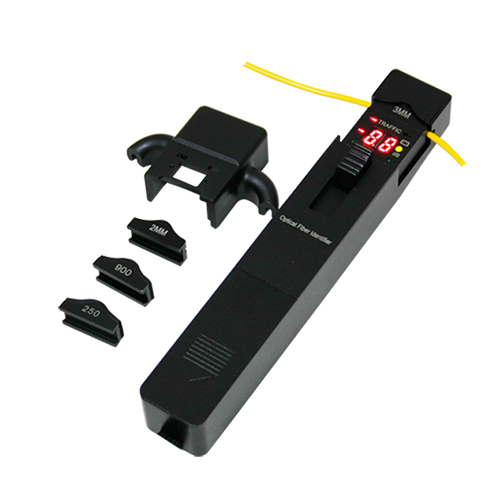

SKYCOM T-FI350 ຕົວລະບຸເສັ້ນໄຍແສງ (800-1700nm)
Identified Wavelength Range: 800-1700 nm
Identified Signal Type: CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type: Ø1mm InGaAs 2pcs
Adapter Type:
Ø0.25 (Applicable for Bare Fiber), Ø0.9 (Applicable for Ø0.9 Cable )
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction: Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber): -46~10 (1310nm); -50~10 (1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber): -50~+10
Signal Frequency Display (Hz): 270, 1k, 2k
Frequency Test Range (dBm, Average Value):
Ø0.9, Ø2.0, Ø3.0 -30~0 (270Hz,1KHz)-25~0 (2KHz)
Ø0.25-25~0 (1KHz,2KHz)-20~0 (2KHz)
Insertion Loss (dB, Typical Value): 0.8 (1310nm); 2.5 (1550nm)
Alkaline Battery(V): 9
Operating Temperature (°C): -10-+60
Storage Temperature (°C): -25-+70
Dimension (mm): 196X30.5X27
Weight (g): 200
Accessories Standard:
T-FI350 Optical Fiber Identifier: 1
Adapter heads: 4
Alkaline battery: 1
User’s manual: 1
Cotton Stick and Soft Carrying case: 1
