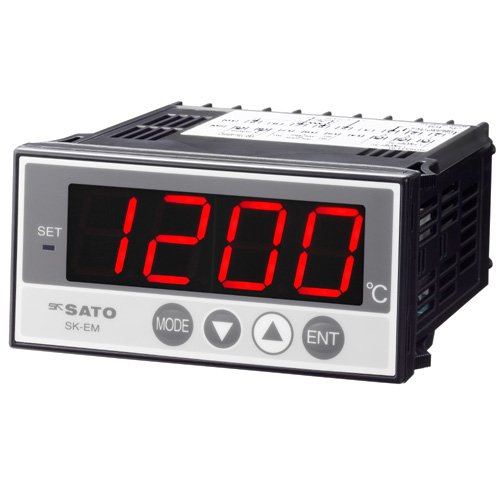

skSATO SK-EM-01 Digital Panel Meter (-10°C~50°C;<90%rh)
Display: 7 segment LED (height of character: 20mm)
Power requirements: 100 to 240V AC ±10% (50/60Hz)
Power consumption: 11VA (100 to 240V AC)
Operating ambient: Temperature:-10°C to 50°C, Humidity: lower than 90%rh(No condensing),Max. elevation: 2000m
Display accuracy:
±(0.3%FS+1dgit) within measuring range
Thermocouple input: excluding cold junction temperature compensation accuracy.
Thermocouple B: ±5%FS at lower than 400°C
Thermocouple T,U: ±0.5%FS at -100°C to 0°C
±1%FS at lower than -100°C
Insulation resistance:
Between input/output terminal-power terminal: more than 500VDC; 20MΩ
Between input/output terminal-earth terminal: more than 500VDC 20MΩ
Dimensions/weight: (W)96 × (H)48 × (D)111mm (inside100mm)/ approx. 250g
