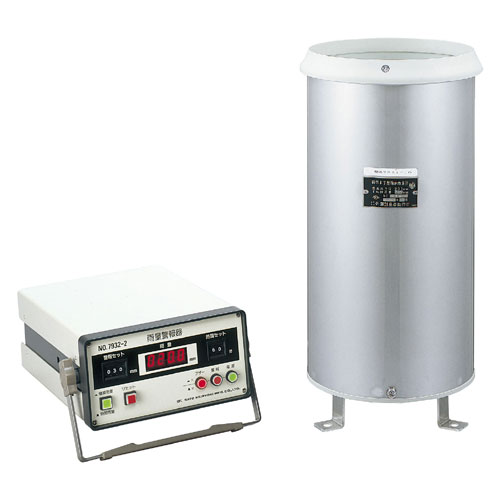

skSATO 7932-02-00 ຕົວຊີ້ວັດປະລິມານຝົນດິຈິຕອນ (0~1000mm)

SPECIFICATIONS OF SENSOR

Type of sensor: Tipping bucket type rainfall sensor 1 contact point pulse per 0.5 mm of rainfall (non-voltage)

Contact point capacity: Max. working current: 1 ADC

Max. working voltage: 250 VDC

Contact point time: >0.1 second

Dia. of rain collector: Ø200 mm

Outline dimensions: Ø200 x 450 (H) mm

Weight: ~3.5 kg

SPECIFICATIONS OF INDICATOR

Measuring range (Digital display): 0~1000 mm (repeat) 4 digits, 0.5 mm step

Alarm:

+ Time setting: Digital switch for rainfall time 2 digits, 1 to 99 minutes (selectable)

+ Alarm setting: Digital switch for integrated rainfall depth, 3 digits, 1 to 999 mm (selectable)

+ Alarm output: Relay contact output (normal open)

Contact point capacity: AC 110 V, DC 24 V 3A

+ Alarm switch: ON/OFF switch for alarm

+ Buzzer switch: ON/OFF switch for buzzer

+ Reset: Reset the data of digital display by reset switch

Integration/Time: Selectable by switch

Back up power supply: 7 hours by build-in battery

Combined accuracy: Below 20 mm of rainfall: Within ±0.5 mm

Over 20 mm of rainfall: Within ±3% of indicated value

Power requirements: 100 VAC ±10% 50/60 Hz (other voltage is available)

Power consumption: 100 mA max.

Outer dimensions: 206(W) x 106 (H) x 305 (D) mm

Weight: ~4 kg

Panel cut size: 204 (W) x 104 (H) mm
