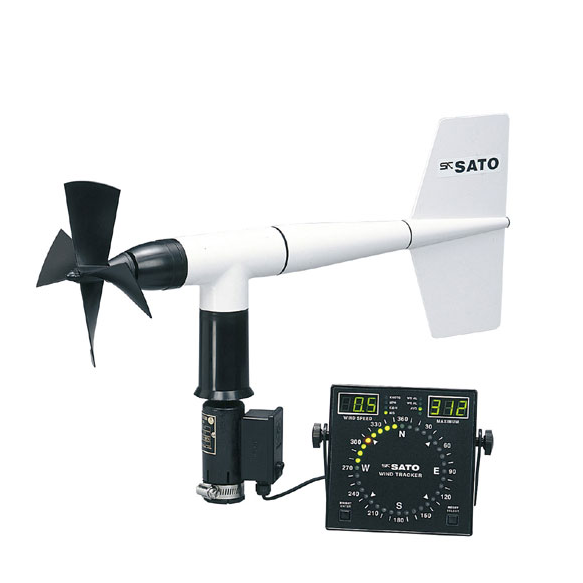

Wind direction and speed display (Wind tracker)
Input connection: Connect wind direction and speed sensor directly
Connect tracker (display) in tandem
(One sensor has multiple displays indicate values with RS485 signal)
Display: Wind directions (36 directions, LED dot display)
Select instantaneous, average wind direction
Wind speed (3 digits, digital display)
Select instantaneous, average, maximum wind speed
Analog output: Instantaneous wind direction: 0~5 VDC /0~540°
Instantaneous wind speed: 0~5 VDC /0~100m/s
Alarm output: Zero voltage contact output NORMAL OPEN (AC250V, DC30V.2A)
Alarm sound (activated when alarm state)
Alarm LED (blink when alarm state)
Ambient temperature and humidity: Temperature: 0~50°C
Humidity: 0~95%rh (Indoor specifications)
Power requirement: AC adaptor Max power consumption 4.5W
Dimensions: (W)144×(H)144×(D)36mm
Weight: 450g
Wind direction and speed sensor (Wind monitor) encorder type
Wind direction converter: Electrically effective degree angle (0~360°)
Wind direction output: Digital signal (RS485)/0~360° or
Analog signal (0~5 VDC)/0~540°
Wind speed output: Digital signal (RS485)/0~50m/s or
Analog signal (0~2.5 VDC)/0~50m/sec
Starting threshold: 1m/sec
Withstanding wind speed: 70m/sec
Accuracy (wind direction): ±5°
Accuracy (wind speed): Accuracy is less than 0.5m/s when wind speed is less than 10 m/s.
Accuracy is less than 5% of indicated value when wind speed is more than 10 m/s.
Maximum distance between sensor and display: about 100m
(20 m cable comes as a standard accessory)
Cable: five-core, shielded cable
Shape of propeller: screw propeller with 4 wings, diameter 180mm
Rotation radius, weight: 380mm, about 1 kg
Materials: Main body and tail: ABS resin
Propeller (compatible): polypropylene
Japan Meteorological Agency certification: Available (JMA certified one is available for stock item too); Cat.No.7270-55
