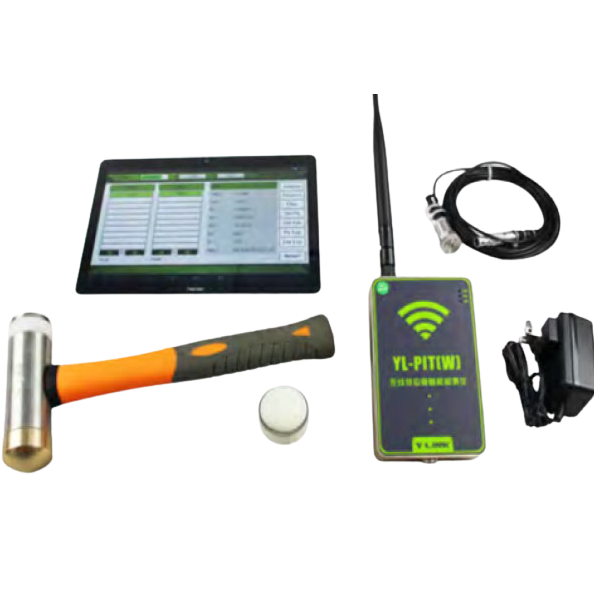

Jeweltest YL-PIT(W) Pile Integrity Tester (Wireless)

Control unit: Low power embedded industrial processor

Voice function: Smart voice prompt

Storage capacity: 16G(can be extended to 128G)

Power mode: Rechargeable lithium battery≥8 hours

Operation mode: Tablet

Data transfer mode: USB2.0

Sampling interval: 5μs~200μs

Record size: 1024 points

Sampling resolution: 24-bit A/D

Signal bandwidth: 5Hz~12kHz

System noise: <30μv

Dynamic range: ≥100dB

Channel: 1

Sensor: Piezoelectric accelerometer/Speedometer

Operation temperature: -20ºC~+55ºC

Dimension: 132×183×26mm

Weight: About 0.5kg
