Gain: 2 dBi
VSWR: 1.5

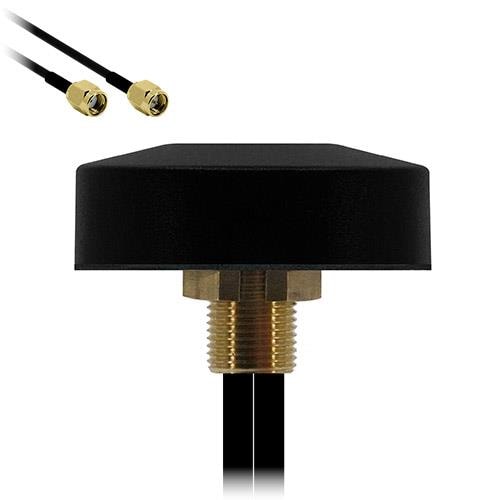

Style: Puck
Length: 14.5 mm
Diameter: 46 mm
Frequency: 1880 MHz to 1900 MHz, 2400 MHz, 2575 MHz to 2635 MHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 500 mm RG174
Application: Cellular Applications, Wireless Applications
Unit Weight: 90 g
Cable Length: 0.5 m
Polarization: Vertical
Power Rating: 60 W
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Frequency Range: 1.88 GHz to 2.635 GHz
Number of Bands: 3 Band
Center Frequency: 1.89 GHz, 2.4 GHz, 2.6 GHz
Mechanical Style: Module
Maximum Frequency: 2.635 GHz
Minimum Frequency: 1.88 GHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Protocol - Cellular, NBIoT, LTE: 2G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GPRS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
