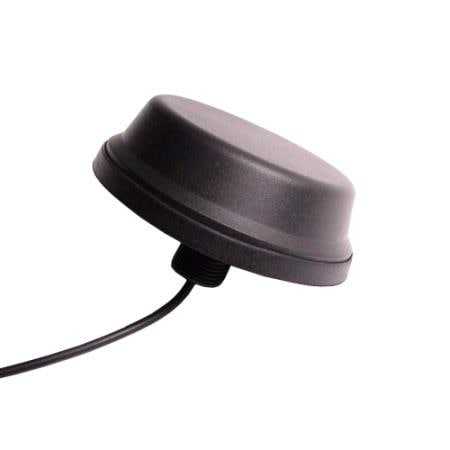

Siretta TANGO11A/1.5M/SMAM/S/S/19 ອະນເຕນາພາສິບ ISM & DUAL-BAND WI-FI/5G,4G THROUGH HOLE PUCK ANTENNA SMA MALE CONNECTOR 1.5M CABLE

Gain: 3 dBi

VSWR: 1.8

Style: Puck

Length: 23 mm

Diameter: 80 mm

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1.5 M RG174

Application: Cellular Applications

Unit Weight: 85 g

Cable Length: 1.5 m

Polarization: Linear Vertical

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Frequency Range: 850 MHz to 2.1 GHz

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: Module

Maximum Frequency: 2.1 GHz

Minimum Frequency: 850 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS
