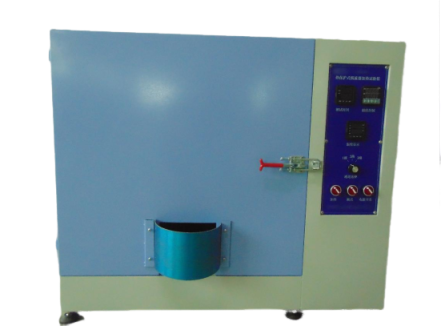

Sinuo SN9947B ຫ້ອງທົດສອບຄວາມຮ້ອນຂອງອຸປະກອນປ້ອງກັນຄວາມຮ້ອນ Thermal Protection Ballast (40°C)

Test chamber inner dimensions: L610mm x W610mm x H610mm (from shelf to top).

Test chamber outer dimensions: L660mm x W660mm x H760mm.

Shelf dimensions: L560mm x W560mm x D25mm.

Heating chamber clearance: 75mm.

Front door: Pull-out, 150 x 150mm opening, sealed with aluminum semicircular components.

Sample holder: Fabricated as per Figure D.1 in Appendix D of the standard.

Heating element:

Heating element: 300W stainless steel heater.

Heat sink: Brass heat sink.

Heat sink dimensions: L40 x W40 x L300mm.

Quantity: 1 set. 7.5) Heating Control: Thermocouple sensing, temperature controller control.

Control Box:

The temperature controller is installed on the front of the box.

Temperature control uses PID control.

Box Material: Iron, painted computer white.

The heating element is controlled by a solid-state relay.

Test Temperature: 40°C
