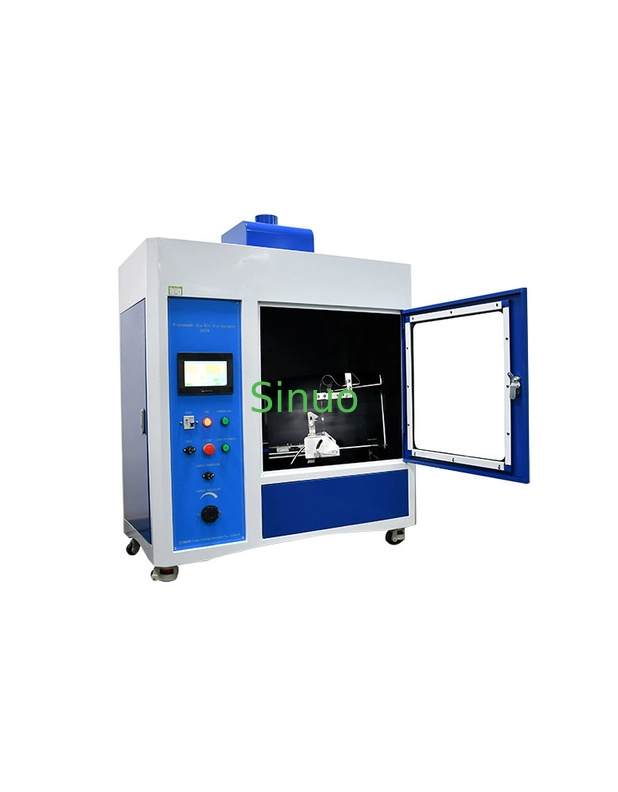

Sinuo SN773 ເຄື່ອງທົດສອບແສງເພື່ອນເຂົາ

Working voltage:  AC 220V/50Hz

Control: PLC

Display: 7 inch color touch screen

Timing device: 9999X0.1S

Combustor: Inner boreφ0.5mm ± 0.1mm , OD ≤φ0.9mm, L ≥ 35mm, stainless steel

Combustion angle: tilt 45°( testing ) or vertical ( when adjust the height of the flame)

Height of the flame:  12±1mm adjustable(with flame height gauge)

Gas category:  95% butagas ( can use the bottled lighter gas)

Range of temperature test:  0~1000℃

Flame warming requirement: From 100°to 700°,time for standard values within 23.5S±1S

Temperature thermocouple: φ0.5 armour nickel-chromium/nickel aluminum wire KThermocouple

Work shop: 0.5 cube, stainless steel case, black yogon background

Testing process:  Test procedure automatic control, independent air draft

Volume size adjustment:  Flowmeter adjustment

Equipment size & weight:  1100mm* 550mm* 1100mm, 120KGS
