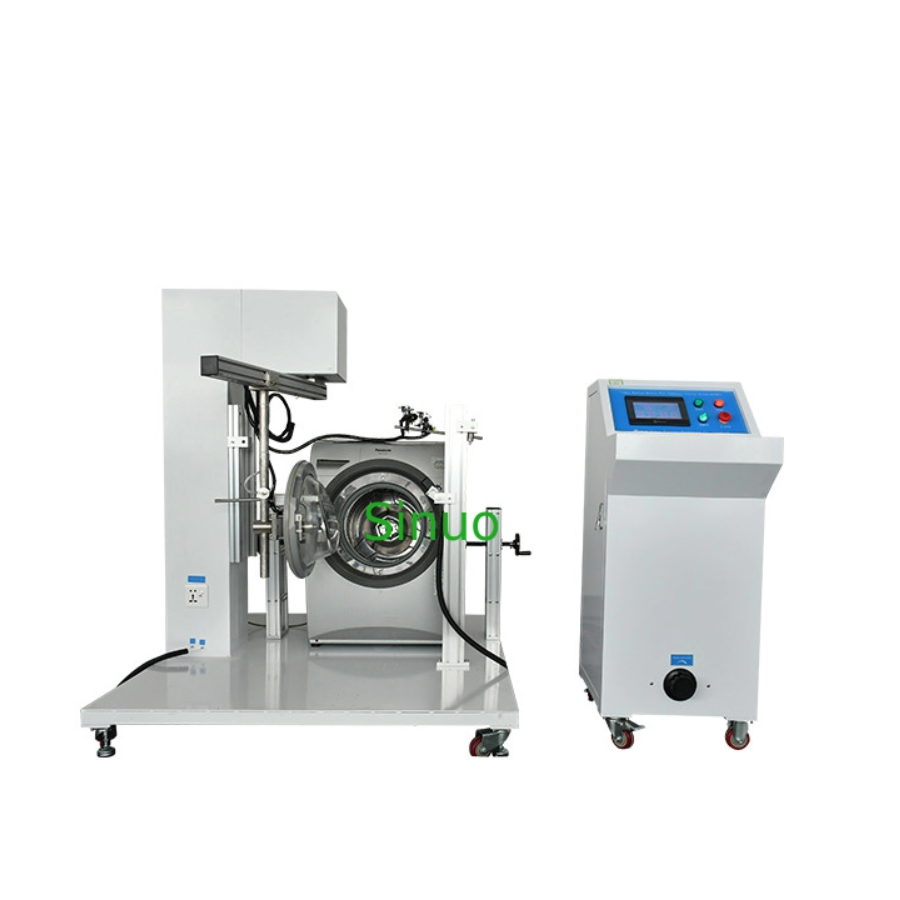

Sinuo SN1401A IEC 60335-2-7 ເຄື່ອງຊັກຜ້າ Tumble ອຸປະກອນທົດສອບຄວາມທົນທານຂອງປະຕູ (AC220V, 50 Hz, 3KW)
Power Supply: AC220V±10%/ 50 Hz, power 3KW
Test Stations: One station, for testing tumble washing machine with door, both left and right door can be supported
Control Method: PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode: Servo motor drive
Clamping Method for Specimen: Vacuum suction cup, pneumatic
Door Opening or Closing Speed: 0-360°/s(1.5m/s), can be preset
Door Opening or Closing Angle: 0-130°, can be preset
Test Times: 0-999999times, can be preset
Door Opening or Closing Force: 0-200N, can be preset (the opening force value is only for the pull test when the interlock device is actuated to lock the door)
Load Voltage: 0-250V, adjustable
Auxiliary Action Mechanism: Washing machine starts pressing cylinder (can be customized)
Test Contents: Tumble washing machine door interlocking device endurance test (IEC 60335-2-7 clause 18.101)
