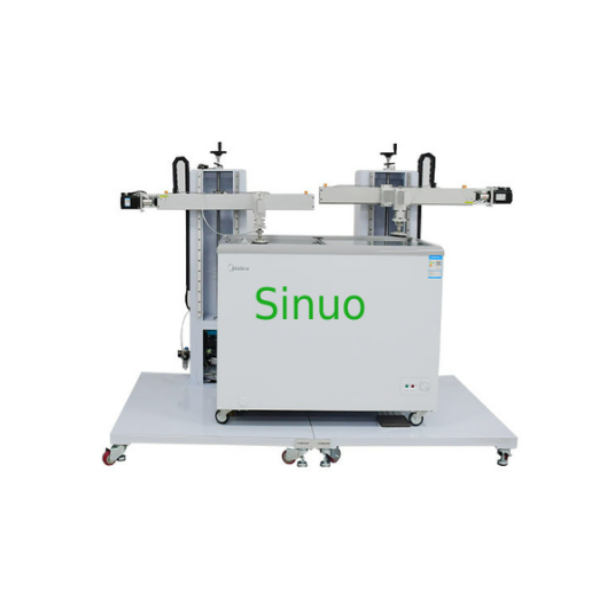

Sinuo SN1201-S1 ເຄື່ອງທົດສອບການເປີດ ແລະປິດຝາສະໄລ້ຕູ້ແຊ່ແນວນອນ (AC220V)

Input power: AC220V 50HZ, 5kW

Electrical control: Mitsubishi PLC intelligent control

Operation interface: Weinview 7-inch color man-machine interface touch screen operation

Drive mode: Servo motor + precision sliding platform

Range of samples: The same types of samples shown as in Figure: WDH=(60~214cm)×(45~70cm) ×(70~90cm)

Test items: Freezer slide lid durability test

Test station: 1 station, can test a horizontal freezer with left and right slid lids

Lid opening stroke: 0-500mm±0.1mm can be set on touch screen, adjustable on both sides

Lid first opening time: 3min

Lid opening pause time: 0-9999S, can be set on touch screen

Lid closing pause time I: 0-99h59m59s, can be set on touch screen

Lid closing pause time II: 0-99h59m59s, can be set on touch screen

Lid open/close speed: 10-600mm/s, can be set on touch screen

The overall size and weight of the testing machine: Frame WDH: Width 1800*Depth 1200*Height 1400mm, about 350kg
