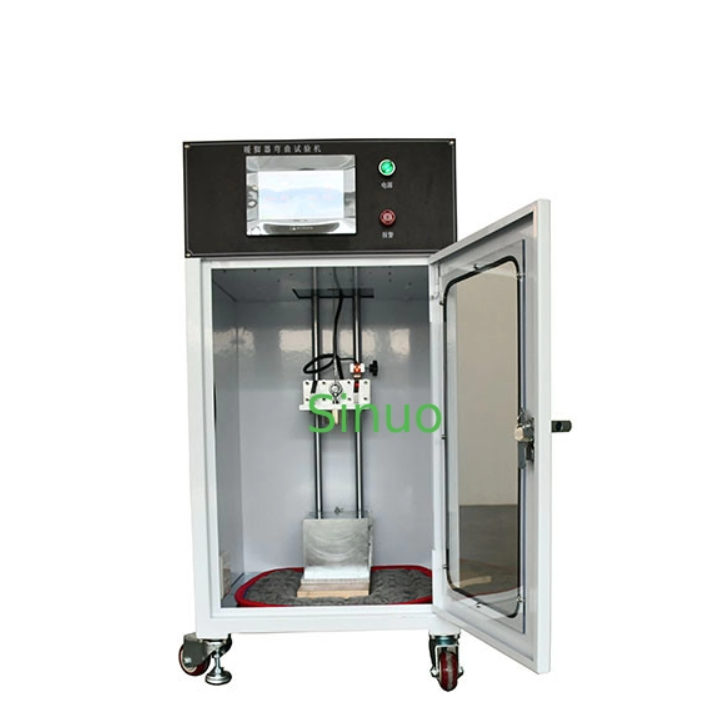

Sinuo SN1121 ອຸປະກອນທົດສອບຄວາມອົບອຸ່ນຕີນ Flexing Test IEC 60335-2-81 ຮູບ 101
Power supply: Match client’s local power supply requirements
Test times: 0~9999, can be set on the touch screen. Default 1000 times.
Drop frequency: 6 times/min, can be preset
Load weight: 30KG (total mass of weight, board and connecting supports)
Drop height: 200mm
Plywood board: Dimensions approximately 300*150*20mm with rounded edges
Operation mode: The electromagnet absorbs the weight and lifts it to 200mm height and then automatically releases the weight to impact the sample
Alarm function: With the power-on test function, it can realize the alarm function of disconnecting the circuit load of the sample
Control: This equipment adopts PLC control, touchscreen operation and motor
