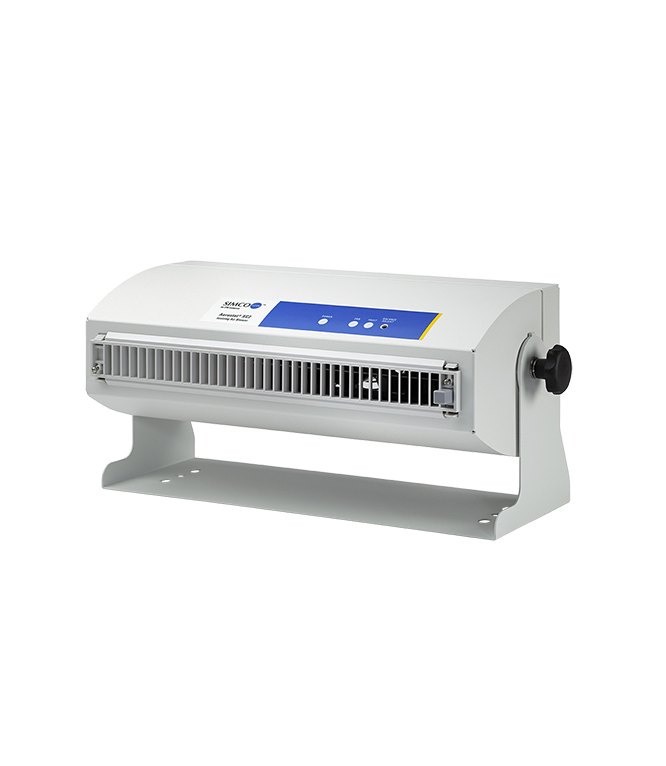

SIMCO Aerostat XC2 ເຄື່ອງເປົ່າໄອອອນໄນຊ໌ ພື້ນທີ່ຄອບຄຸມຂະຫຍາຍ
Input Voltage
100-240 VAC, 50/60 Hz, 0.5A, 55W max (without heater)
120V with Heater: 100-120 VAC, 3.5A, 420W
220V with Heater: 220-240 VAC, 1.9A, 460W
Discharge: 1.0 sec @ 12” (30.5 cm); 1000-100V fan high
Balance: 0 ±10V
Coverage: 36”W x 72”L (91.4 x 182.9 cm); effective coverage area is up to 72” from blower face
Ion Emission: Micropulse (μPulse) Technology
Emitter: Stainless Steel
Cleanroom Class ISO: 14644-1 Class 6 (heater off)
LED Indicator: Green POWER on, Red FAULT alarm, Red FAN STALL alarm
Control: Power ON/OFF, fan speed LOW/MEDIUM/HIGH, EMITTER POINT CLEANER push
button, balance adjust TRIMPOT, heater ON/OFF (optional)
Connector: FMS fault alarm output connector
Air Supply
Volume: 95 cfm (fan low), 150 cfm (fan high)
Speed: 620 fpm @ 12” (3.15m/s @ 30.5 cm), 435 fpm @ 24” (2.21m/s @ 61.0 cm),
325 fpm @ 36” (1.65 m/s @ 91.4 cm), 265 fpm @ 48” (1.35 m/s @ 122 cm) (fan high)
Heated Temp: 4-5°F (2-3°C) above ambient; measured 12” (30.5 cm) in front of blower (optional)
Audible Noise: 58 dB (fan low), 70 dB (fan high); measured 24” (61.0 cm) in front of blower
Audible Alarm: Fault and fan stall (optional)
Ozone: <0.05 ppm; measured 12” (30.5 cm) in front of blower
Operating Env: 50-95°F (10-35°C), 30-60% RH, non-condensing
Mounting: Powder-coated steel stand with skid resistant rubber feet
Enclosure: Powder-coated aluminum chassis
Dimension: 14.13”W x 7.19”H x 7.53”D (35.9 x 18.3 x 19.1 cm) with stand
Weight 7.0 lb (3.18 kg) with stand
