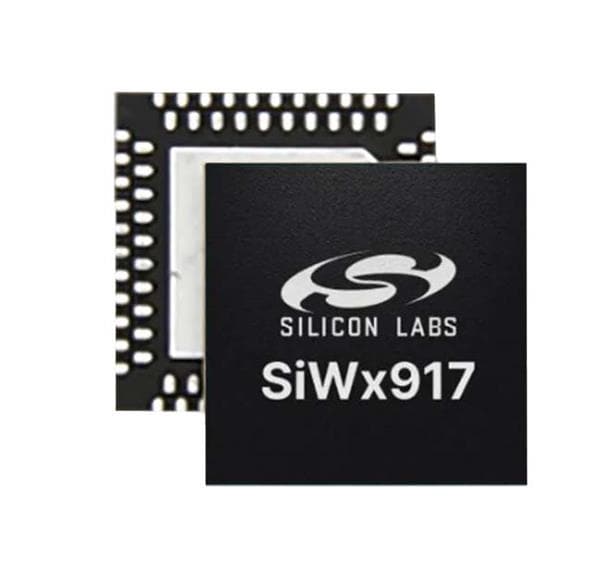

Silicon Labs SiWT917M100XGTBA Transceiver Wi-Fi 6 RCP Transceiver IC, QFN 7x7, 2.4 GHz, ບໍ່ມີ flash, -40 ຫາ +85C

Core: ARM Cortex M4

Width: 7 mm

Height: 0.85 mm

Length: 7 mm

Technology: Si

Sensitivity: - 95 dBm

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, SPI, UART, USART

Mounting Style: SMD/SMT

Number of I/Os: 45 I/O

Number of Timers: 5 Timers

Maximum Data Rate: 5 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.412 GHz to 2.484 GHz

Supply Voltage - Max: 3.63 V

Supply Voltage - Min: 1.71 V

Number of ADC Channels: 16 Channel

Maximum Clock Frequency: 180 MHz

Operating Supply Voltage: 1.71 V to 3.63 V

Supply Current Receiving: 18 mA

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
