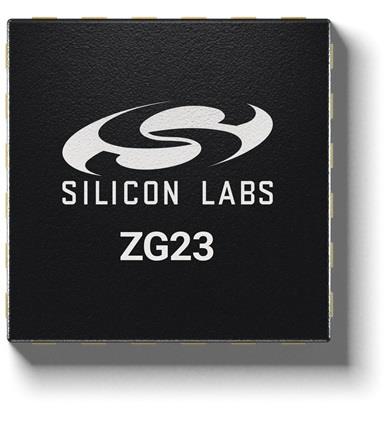

Silicon Labs EFR32ZG23A010F512GM48-B Sub-GHz ZG23, Sub-GHz, 512kB Flash, 64kB RAM, +14 dBm, QFN48

Core: ARM Cortex M33

Width: 6 mm

Height: 0.85 mm

Length: 6 mm

Technology: Si

Sensitivity: - 109.8 dBm

Output Power: 14 dBm

Data RAM Size: 64 kB

Data RAM Type: RAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 32 I/O

Maximum Data Rate: 100 kbps

Moisture Sensitive: Yes

Operating Frequency: 868 MHz, 915 MHz, 920 MHz

Program Memory Size: 512 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.71 V

Maximum Clock Frequency: 78 MHz

Supply Current Receiving: 4 mA

Supply Current Transmitting: 25 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
