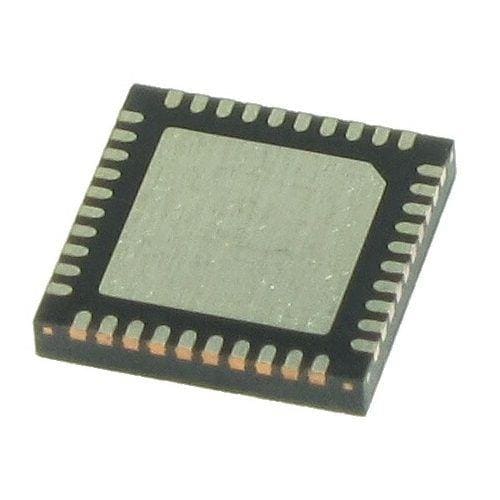

Silicon Labs EFR32BG24A010F1024IM40-B Bluetooth BG24, 2.4 GHz, 1024kB Flash, 128kB RAM, +10 dBm, +125C, QFN40

Core: ARM Cortex M33

Technology: Si

Sensitivity: - 94.8 dBm

Output Power: 10 dBm

Data RAM Size: 128 kB

Data RAM Type: RAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C

Mounting Style: SMD/SMT

Maximum Data Rate: 2 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 1 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.71 V

Maximum Clock Frequency: 78 MHz

Supply Current Receiving: 4.4 mA

Supply Current Transmitting: 19.1 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
