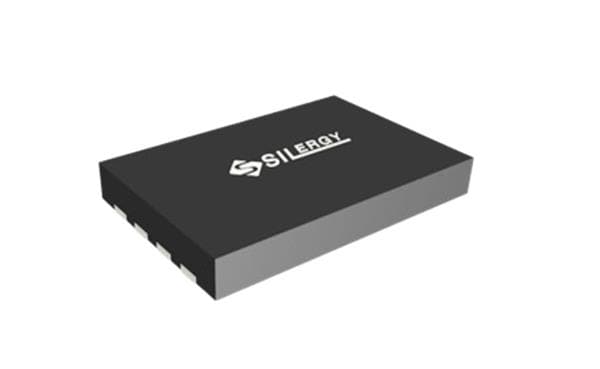

Silergy SY20737HDGD Linear Vin 36V, Io 0.5A, LDO

Polarity: Positive

Tolerance: 1 %

Output Type: Adjustable

Unit Weight: 9.580 mg

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 0 V to 36 V

Dropout Voltage: 500 mV

Line Regulation: 0.2 %/V

Load Regulation: 0.25 %

Number of Outputs: 1 Output

Reference Voltage: 1.235 V

Moisture Sensitive: Yes

Input Voltage - Max: 36 V

Input Voltage - Min: 4 V

Dropout Voltage - Max: 750 mV

Pd - Power Dissipation: 2.17 W

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
