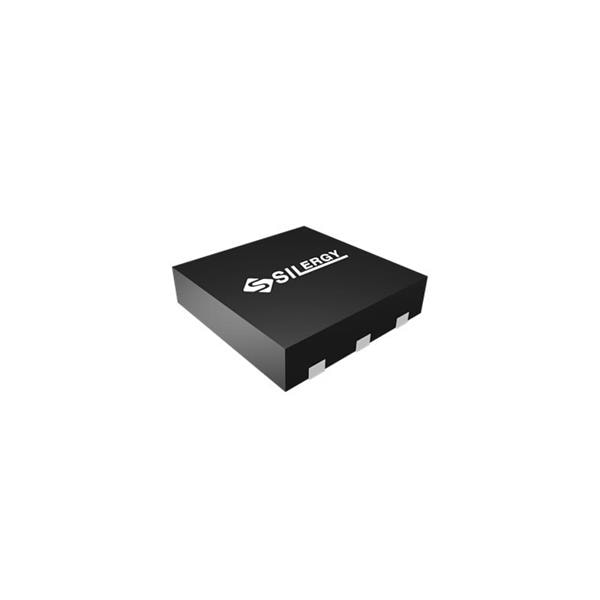

Silergy SY20731DSC Low Dropout Vin 5.5V, Io 1A, LDO

Polarity: Positive

Output Type: Adjustable

Unit Weight: 21.881 mg

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 1 V to 5.5 V

Dropout Voltage: 50 mV

Line Regulation: 0.05 %/V

Load Regulation: - 3 mV/A

Number of Outputs: 1 Output

Quiescent Current: 60 uA

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 1.6 V

Dropout Voltage - Max: 100 mV

Pd - Power Dissipation: 2 W

Operating Supply Current: 60 uA

Operating Temperature Range: - 40 C to + 85 C

Voltage Regulation Accuracy: 3 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: - 60 dB
