Pressure range: - 1 ~ 40 bar
Accuracy (± of full scale value): 0.5 %
Units: bar / mbar, kPa / MPa, PSI, kg/cm², mH₂O, inH₂O

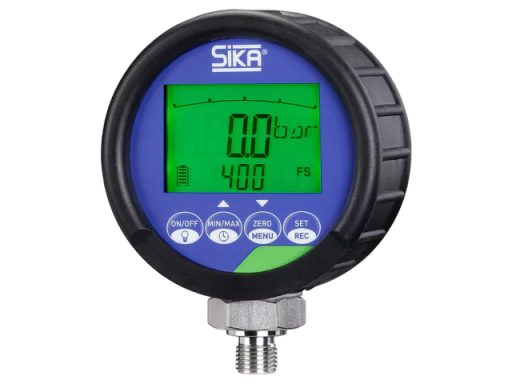

Display: Multifunctional LCD, 4 ½ digit, with background lighting
Functions:
Bar graph
Pressure unit
Display filter
MIN/MAX value
Overpressure indication 110 % of full scale pressure value (FS)
Measuring System
Pressure measuring cell:
≤ 10 bar: bar piezo resistive
≥ 20 bar: thin film strain gauge
Temperature compensation: 0…50 °C
Temperature error: 0.005 % of full scale pressure value (FS) / K
Measuring rate actual value: 10 ms
Measuring rate bar graph: 50 ms
Process Connection
Thread ISO 1179-2: G½ with NBR gasket, AF27
Material: Stainless steel 1.4404
Medium temperature: –20…80 °C
Housing connection: 270° axially rotatable
Housing
Degree of protection (DIN EN 60529): IP67
Dimensions: Ø 90 mm, D=45 mm, H=120 mm (with protection cap)
Materials: Cast zinc with protection cap made of TPE
Ambient conditions: 0…50 °C, air humidity ≤85 % r.h.
Weight: 540 g
Vibration resistance (IEC 60068-2-6): 5g up to 500 Hz
Shock resistance (IEC 60068-2-29): 25g for 11 ms
Power Supply
Auto-off function: Selectable switch-off time 5 minutes
Battery type: 2 × 1.5 V AA
Battery operation: 1500 h
Data Logger (optional)
Max. data sets: 27,000 per recording series
Record series: 1…10
Storage rate: 0.1…6.4 s (automatically per recording duration)
Max. recording duration: 48 h
Data set information: time / actual pressure / MIN/MAX value
Digital data transmission: serial USB 2.0
Interface: Mini USB port
PC software: Detected as USB data storage device, spreadsheet program
File format: .csv
