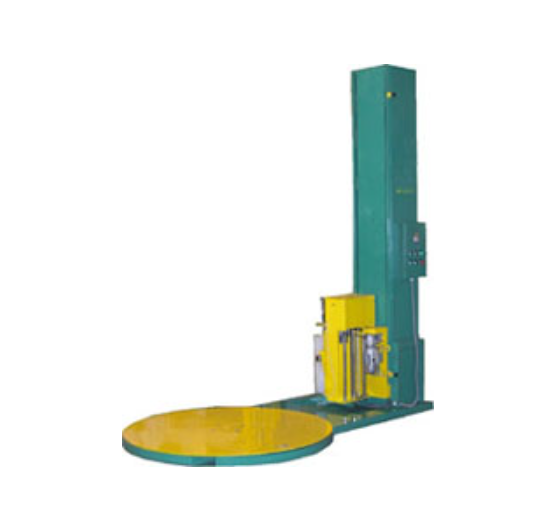

SIGNODE HLS ລຸ້ນຕໍ່ໄປເຄື່ອງຫໍ່ stretch ເຊັນເຊີ
Performance
Loads per hour: Up to 30
Turn table speed: Upto 10 rpm variable
Maximum load size: 1200mm(L)x 1200mm(W)x 2600mm(H)
Maximum load weight: 2000 kg (Centered)
Minimum wrap height: Turn table surface
Turn table
Table diameter: 1600mm
Support rollers: High resistance POB rollers
Drive system: Chain and sprocket type
Drive motor: 1.0 HP, 415 VAC, 3ph, 50 Hz
Turntable bed height: 90 mm from the ground
Machine Dimensions
Machine length: 2900mm
Machine width: 1610mm
Machine height: 2800mm
Machine weight: 700kg ( Approx)
Power requirements
230vac, 1phase, 50 Hz, 16amps, 2kw
Film delivery system
Pre-stretch type: Powered pre-stretch
Film stretch: Variable stretch up to 300%
Film roll width : 508mm ( 20")
Film roll Diameter - Max.: 254mm (10")
Core size: 76.2mm ( 3")
Min. film tension: 0.5 kg (approx)
Film force control: Electronically-Adjustable
Carriage speed: Adjustable, UP/Down speed through VFD
Powered pre-stretch motor: 0.5HP, 415 VAC, 3ph, 50 Hz
Electrical Controls
Controller type: PLC
Load height sensing: Photo eye
Wrap pattern: Variable wrap selection for both top and bottom wraps with reinforce wrap option
Stretch % and film consumption per Pallet display: Digital text display
Speed controllers: VFD speed controls
