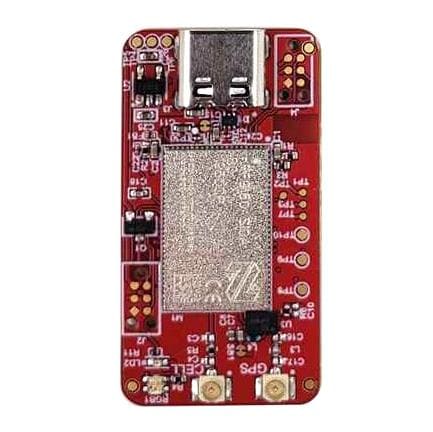

Signetik M1-B1-USB ໂມດູນ BLE USB Nordic Cellular CAT M-1 Nordic BLE Intelligent IoT USB Connector

Frequency: 700 MHz to 2.2 GHz

Dimensions: 38 mm x 20.5 mm x 7 mm

Unit Weight: 5 g

Output Power: 8 dBm

Interface Type: UART, USB

Mounting Style: Screw

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.45 V

Antenna Connector Type: u.FL

Protocol - GPS, GLONASS: GNSS, GPS

Operating Supply Voltage: 5 V

Supply Current Transmitting: 600 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular, LTE, NBIoT

Protocol - Bluetooth, BLE - 802.15.1: BLE, Bluetooth 5.0
