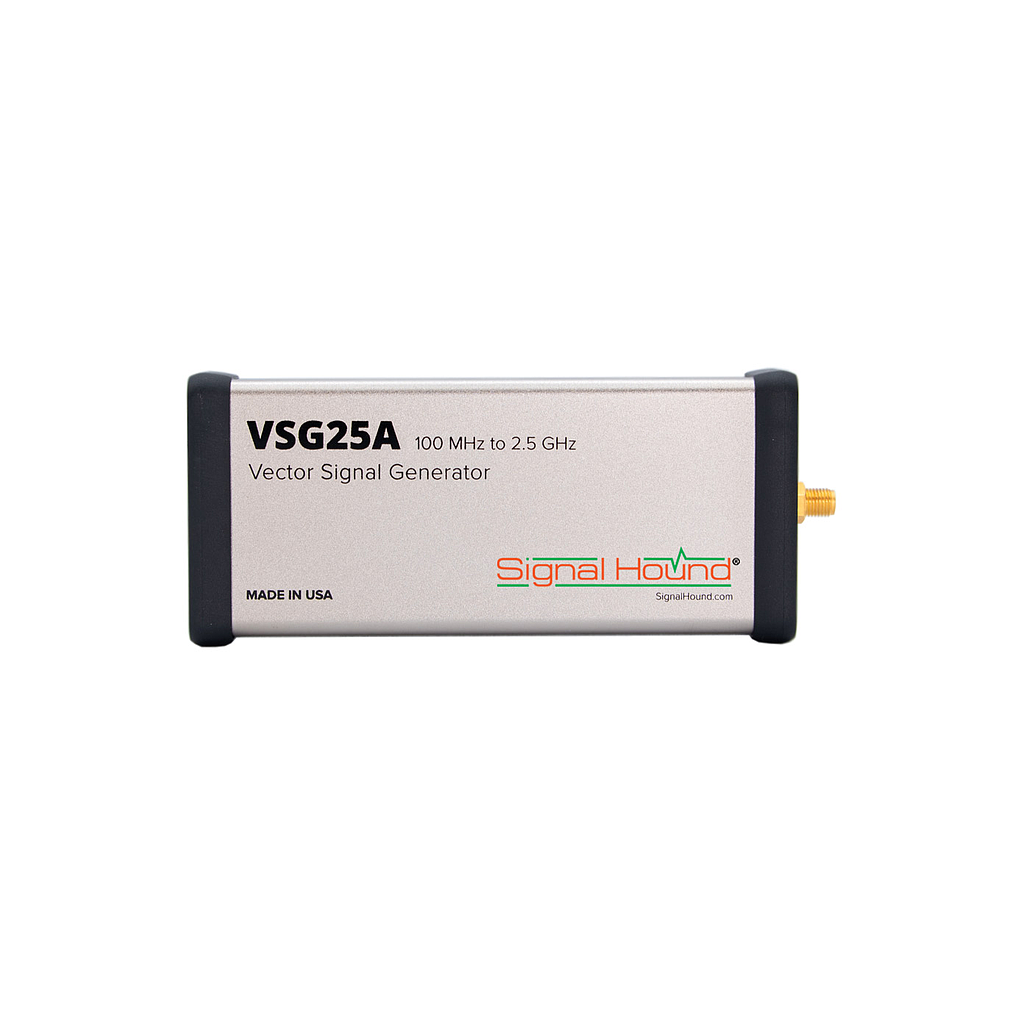

Signal Hound VSG25A ເຄື່ອງສ້າງສັນຍານເວັກເຕີ (100 MHz ~ 2.5 GHz)
Frequency Range: 100 MHz to 2.5 GHz (useable down to 80 MHz)
Frequency Resolution: < 1 Hz
Timebase
Accuracy (excluding temperature drift): ± 5 ppm / year
Temperature Drift: typically -0.2 ppm/°C.
Adjustable to ± 1 ppm
Amplitude: CW Absolute Amplitude Accuracy: -40 to +10 dBm, ± 1.5 dB
Dac Clock/Sample Rate: 53.333 kHz to 180 MHz
Typical SSB Phase Noise (1 GHz)
Offset Frequency/ dBc/Hz typical
100 Hz/ -68
1 kHz/ -88
10 kHz/ -102
100 kHz/ -105
1 MHz/ -132
AM/FM
Modulation Rate: 30 Hz to 40 MHz
AM THD: < 1%
FM THD: < 0.1% (0.01% typical)
Pulse
Pulse width: 6 ns to 25 ms
Duty cycle minimum: 0.00025% (pulse period ≤1.0 s)
Duty cycle maximum 99.9% ("off" time > 6 ns)
On/off ratio > 45 dB (typically 60 dB)
Multi-Tone
Tone count, 2 to 1023 with optional center notch
Tone spacing: 1 kHz to 10 MHz
Tone Phase Relationship: parabolic or random
Operating Temperature: Standard 32°F to 122°F (0°C to +50°C)
Size and Weight: 5.5" x 2.25" x 1.0" (140mm x 57mm x 25mm) 0.5 lb. (227 gm)
Power Consumption: 2 Watts (typ)
Interface: USB 2.0
System Requirements: Windows Operating System, x64_86 architecture
