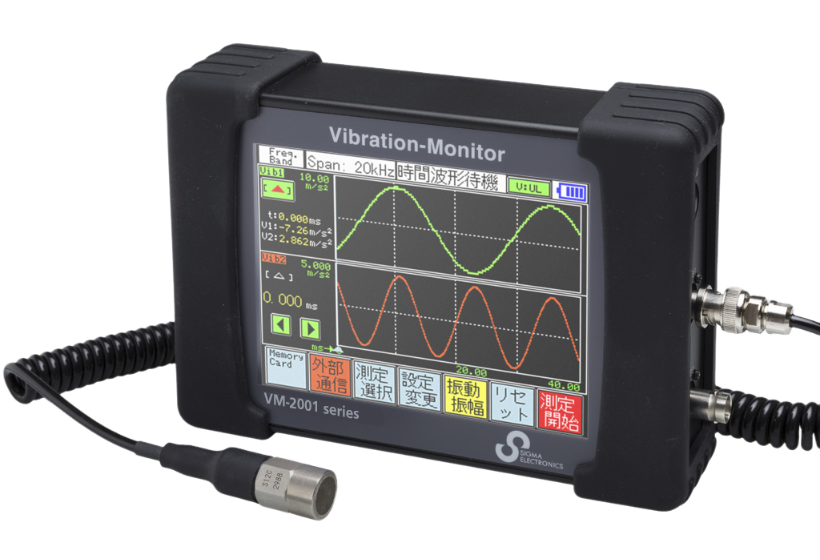

Sigma Electronics VM-2001S ຕວດສອບການສະເຫຼີມສົດ (2CH, 10Hz ~ 20kHz)
Vibration input channels: 2ch
Signal input: CCLD 24V 2mA, BNC connector
*A charge converter is required when using Charge-output type pickups.
Measuring range
Acc. Peak: Greatest value : 280m/s²
Acc. RMS: Root mean squared value : 200m/s²
Acc. C.F.: Acc. C.F. = Acc. Peak / Acc. RMS
Vel. RMS: Root mean squared value : 400mm/s at 80Hz
Disp. RMS: Root mean squared value : 800μm at 80Hz
Disp. EQP-P: Equivalence p-p value : 2240μm at 80Hz
Frequency range
Acceleration:
10Hz to 10kHz ±1.5dB (at 80Hz)
10Hz to 20kHz -3.0dB (at 80Hz)
Velocity: 10Hz to 1kHz (at 80Hz, based on JIS B 0907-1989)
Displacement: 10Hz to 1kHz (at 80Hz)
Vibration value resolution: Acc.P：1.3% of vibration measurement range
Filter
【HPF】: 3Hz / 10Hz / 1kHz Cutoff characteristics：-24dB/oct
【LPF】: 200Hz / 1kHz / 5kHz / 20kHz Cutoff characteristics：-24dB/oct
Analytical function
OverAll Vibration analysis
Meas. items : Acc. Peak, Acc. RMS, Acc. C.F. Vel. RMS, Disp. EQP-P
Simultaneous display
Disp. EQP-P can be switched with Disp. RMS
Vibration history: previous vibration data (up to 400 points) can be displayed without an external device
FFT analysis: -
Meas. items : Acc. RMS, Vel. RMS, Disp. EQP-P, Envelope
Max. analysis frequency : 200, 500, 1k, 2k, 5k, 10k, 20k (Hz)
Number of sampling data : 64, 128, 256, 512, 1024, 2048, 4096, 8192
*Combination of two items from the above is indicated as "Frequency resolution".
Timewave form: -
Meas. items : Acc.
Max. analysis frequency : 200, 500, 1k, 2k, 5k, 10k, 20k (Hz)
Number of line : 25, 50, 100, 200, 400, 800
*Combination of two items from the above is indicated as "Frame time axis length".
Capable of FFT calculation of acquired waveforms
