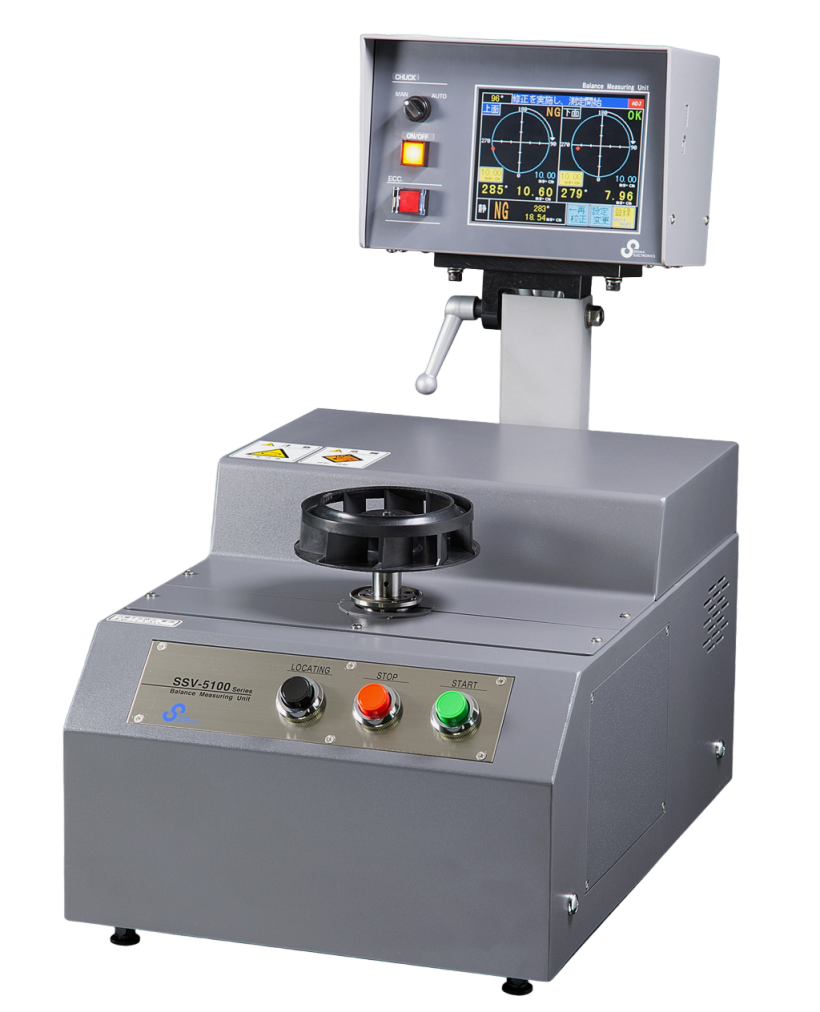

Sigma Electronics SSV2-51001A-CC ເຄື່ອງຈັກການທົດສອບການທົນທານແບບຕັ້ງຕົ້ນ (1,500 ~ 3,500 rpm; ø100mm, 100 g)

Workpiece

Max. Mass: 100 g

Max. Diameter: ø100mm

Journal diameter: ø1.0 to 4.0mm (Replaceable adapter)

Mechanical unit

Motor: AC servo motor, 100W

Chucking Adapter: Air Collet Chuck

Balancing speed: 1,500 to 3,000 min-1

Bearing support system: Soft type

Angle of unbalance index: Automatic indexing of spindle

Measuring unit

Balancing plane: 1or 2  plane

Eccentricity correction: Included

Min. Achievable Unbalance: 1.0µm

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.001mg

Indication mode: Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: Single-phase AC100V

Dimensions: 318(W) x 624(L) x 522(H)mm

Mass: Approx. 47kg
